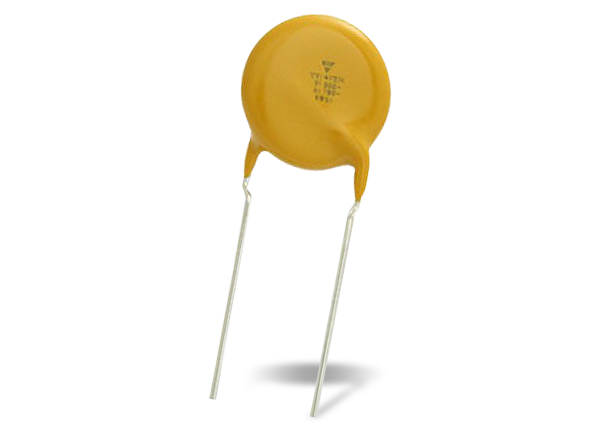

Vishay VY1 Compact AC Line Rated Disc Capacitors offer a capacitance range of 470pF to 4700pF with a tolerance of ±20% (code M); ±10% (code K). These capacitors consist of a ceramic disc, both sides of which are silver-plated, RoHS compliant, and in accordance with WEEE 2002/96/EC. The connection leads are made of tinned copper having a diameter of 0.6mm. Vishay VY1 Compact AC Line Rated Disc Capacitors are ideally suited for applications such as across-the-line, line bypass, antenna coupling, and more.
Complies with IEC 60384-14 4th edition
Vertical (inline) kinked or straight leads
Single-layer AC disc safety capacitors
X1, Y1 according to IEC 60384-14.4
10pF to 4700pF capacitance range
Code M: ±20%
Code K: ±10%
≥10,000MΩ insulation resistance
X1 = 760VAC, 50Hz
Y1 = 500VAC, 50Hz
-40°C to +125°C operating temperature range
