Texas Instruments TPS55288EVM-053 Evaluation Module
Texas Instruments TPS55288EVM-053 Evaluation Module helps designers evaluate the operation and performance of the TPS55288. The TPS55288 Synchronous Buck-Boost Converter is optimized for converting battery or adaptor voltage into power supply rails. The TPS55288 integrates two 16A MOSFETs of the boost leg to balance the solution size and efficiency for USB Power Delivery (USB PD) applications.
The TI TPS55288EVM-053 Evaluation Module features a 2MHz operation frequency and contains the TPS55288 Synchronous Buck-Boost Converter.
Features
- 2.7V to 36V input voltage range
- 0.8V to 21.26V output voltage range
- 97% efficiency at VIN = 12V, VOUT = 20V and IOUT = 3A
- Adjustable switching frequency 200kHz to 2.4MHz
- Programmable output current limit
- I2C Interface

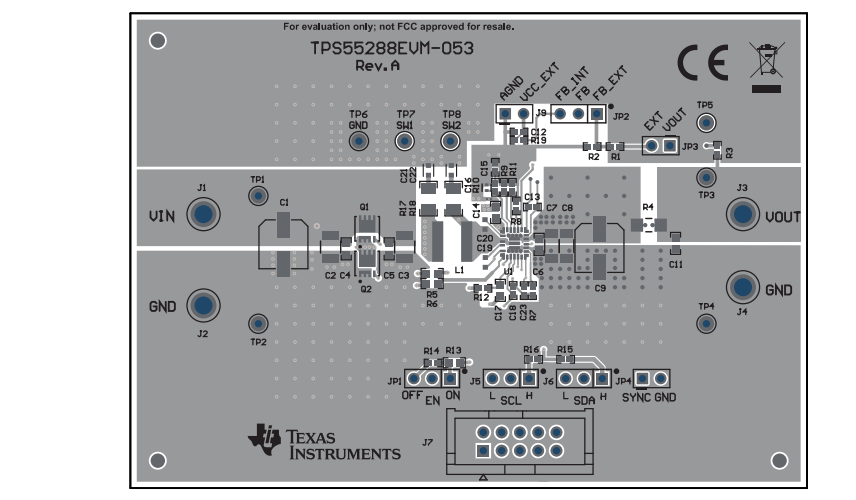

Board Overview

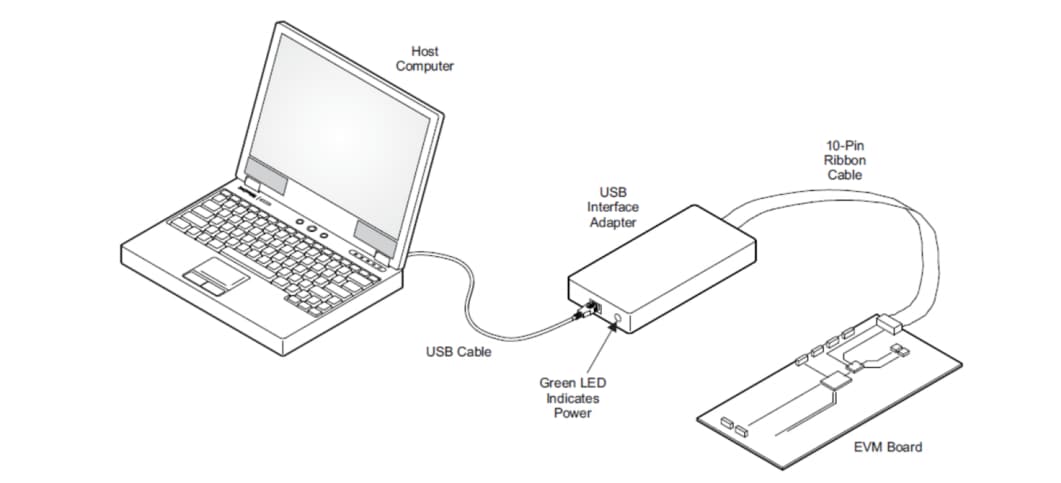

Quick Connection Overview
Related Products
Texas Instruments TPS55288/TPS55288-Q1 Buck-Boost Converter
Converter that is capable of regulating the output voltage at, above, or below the input voltage.
Related Tools
Texas Instruments USB2ANY Interface Adaptor
Allows a computer to control an evaluation module via a USB connection through the small dongle.
