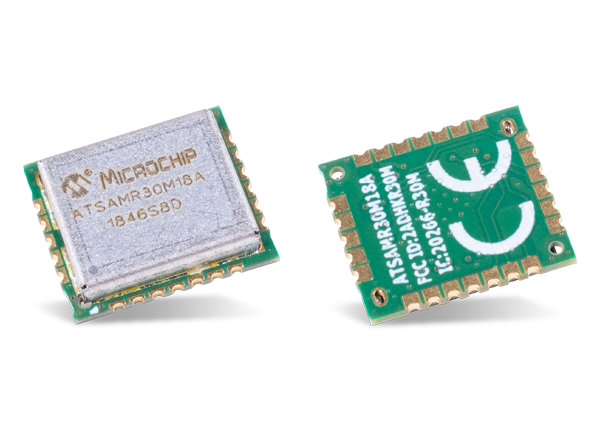

Microchip Technology ATSAMR30M18A IEEE® 802.15.4™ Sub-1GHz Modules

Microchip Technology ATSAMR30M18A IEEE® 802.15.4™ Sub-1GHz Modules are compact RF modules for sub-1GHz Industrial, Scientific, and Medical (ISM) bands. These bands include 780MHz (China), 868MHz (Europe), and 915MHz (North America) and are optimized for low-power applications. The modules combine the SAMR30E18A, 16MHz crystal oscillator, discrete balun, lumped element harmonic reject filter, and required RF shielding. The devices are housed in a compact 12.7mm x 11.0mm design. As implemented on the Xplained Pro board, the module has passed regulatory approvals. These approvals include using the board with a chip or SMA monopole antenna.

Features

Compact 802.15.4 Sub-1GHz module
ATSAMR30E18A SiP with ARM Cortex-M0+ MCU and Sub-1GHz transceiver
Integrated Ultra Low Power Transceiver for 700/800/900MHz ISM band
256KB Flash
16 Input/Output pins
Maximum operating frequency 48MHz
128-bit Advanced Encryption Standard (AES) crypto engine
32-bit Medium Access Control (MAC) symbol counter
Automatic retransmission modes

Single 1.8-3.6V supply
FCC / ETSI compliant RF front end with a harmonic filter
Two Serial Communication interface (SERCOM) units left for external applications
High-precision 16MHz crystal oscillator
12-bit, 350ksps Analog-to-Digital Converter (ADC)
I²C up to 3.4MHz
Full-speed (12Mbps) Universal Serial Bus (USB) 2.0 interface
16 External General Purpose Input/Output (GPIO) lines
