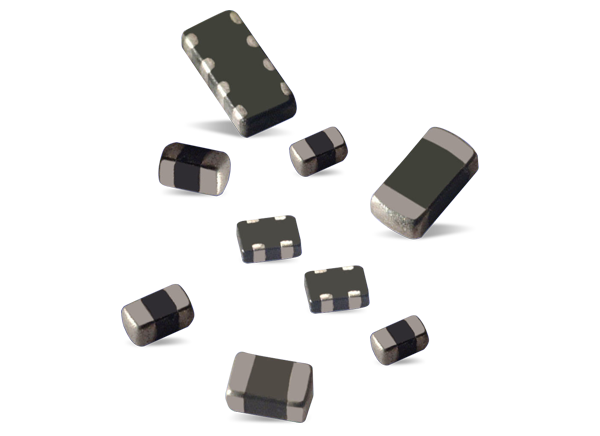

KYOCERA AVX MAV Miniature AC Circuit Protection Varistors offer transient voltage protection in low-power AC applications, higher DC voltage data lines, and in other capacitance-sensitive applications. These varistors provide low loss in the resonant circuit and clamp large amounts of transients in a bidirectional manner. KYOCERA AVX MAV varistors feature AEC-Q200 qualification, lead-free solderability, a 70VDC / 52VAC working voltage, and an operating temperature range of -55°C to +125°C. Ideal applications include automotive, GFI modules, LC resonant circuits, AC sampling circuitry, data lines, and more.
Low capacitance range of 6pF to 22pF
110VP-P at 125kHz capability
-55°C to +125°C operating temperature
70VDC / 52VAC working voltage
ESD rated to 25kV (HBM ESD Level 6)
EMI / RFI attenuation in the off state
0402, 0603, 0405 2xArray case size options
LC resonant circuits
AC sampling circuitry
