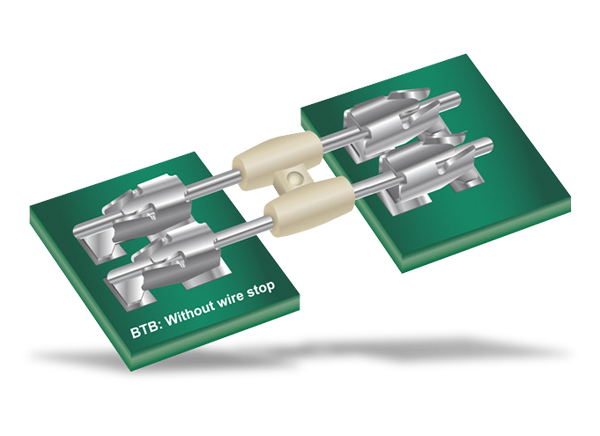

KYOCERA AVX STRIPT™ 10-9296 Jumpers provide additional mating tolerance absorption over traditional connector systems in linear or coplanar applications. The jumpers mate with the 709296001025016 horizontal PCB contact, which does not use a wire stop. This pairing allows the pin header to pass straight through the contacts until the final seating / mating dimension is achieved. This unique design allows for internal pin clearance so boards and modules can be plugged together without worrying about potentially critical tolerance stack-up issues. Other features include fatigue-resistant beams, integral centering guides, and a closed box design. KYOCERA AVX STRIPT™ 10-9296 Jumpers are ideal for single- and dual-pin connections between linear PCBs.
Absorption of PCB and module mating tolerances by allowing the unrestricted pin to pass through the contact by eliminating the traditional wire stop

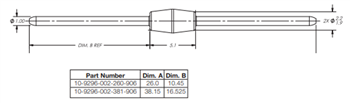

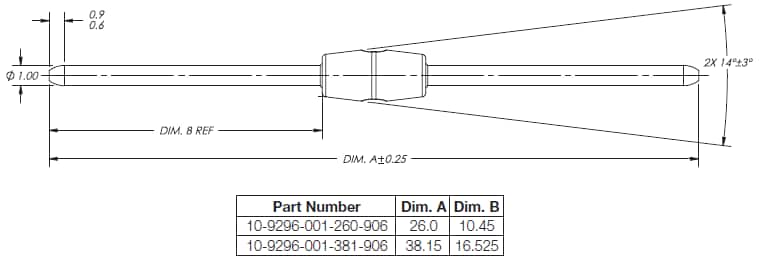

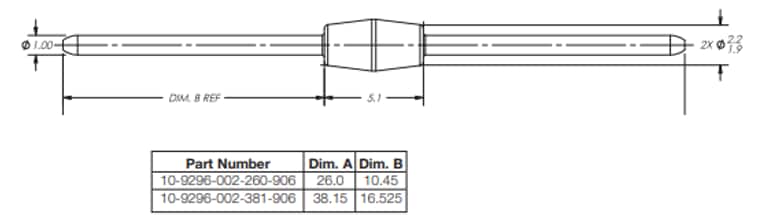

Two pin lengths to accommodate board-to-board and module-to-module connections
Offers water tightness when matched with a corresponding housing cavity
