Guerrilla RF GRF2013 RF Broadband Linear Gain Amplifiers
Guerrilla RF GRF2013 RF Broadband Linear Gain Amplifiers are broadband gain blocks with low noise figures and high linearity. These RF amplifiers are designed for small cell and wireless infrastructures to provide outstanding broadband noise figures, linearity, and return-losses over 0.7GHz to 3.8GHz frequency range. The GRF2013 amplifiers are internally matched to 50Ω at the input and output ports, with only external DC blocks and a bias choke on the output. These broadband gain blocks are operated over a supply voltage of 2.7V to 5V with a selectable IDDQ range of 30mA to 100mA for optimal efficiency. Applications include broadband driver amplifiers, general-purpose linear amplifiers, and small cellular repeaters.
Features
- 1.3dB low noise figure
- 18.5dB operating gain
- 30mA to 120mA selectable IDDQ range
- 0.05GHz to 8GHz operating frequency range
- -40°C to +105°C operating temperature range
Applications
- 802.11ac
- Linear driver amplifiers
- IF amplifier
- Small cells and cellular repeaters
- Wireless backhaul
- General purpose linear amplifiers

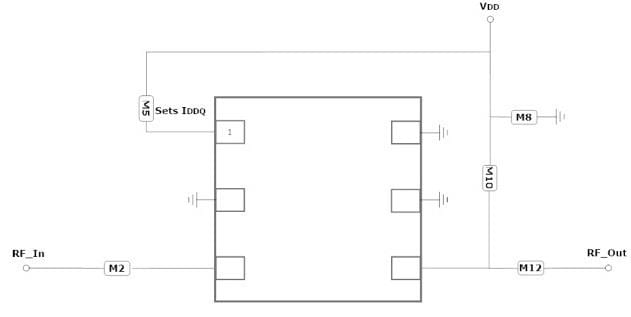

Application Schematic

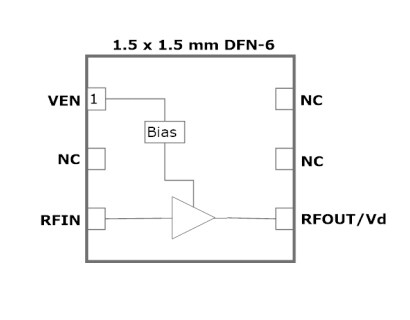

Pin Diagram
