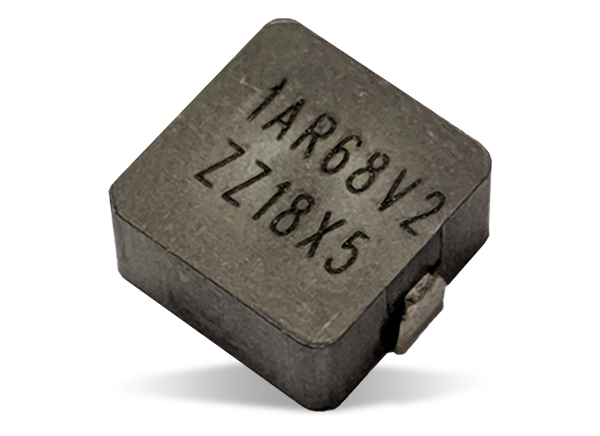

Coiltronics / Eaton HCM1A1105V2 Automotive Grade High Current Power Inductors feature an inductance range of 0.68μH to 68μH in an SMT footprint of 11.2mm x 10.3mm with a height of 5mm. These inductors are magnetically shielded for low EMI and use an advanced molded construction design for high current handling capabilities. The series provides temperature stability over the operating temperature range, low core loss, improved thermal dissipation characteristics, superior mechanical strength. Coiltronics / Eaton HCM1A1105V2 Automotive Grade High Current Power Inductors are designed to meet automotive electronics power and thermal handling requirements. The series is AEC-Q200 Automotive Grade 1 compliant.
High current carrying capacity
Magnetically shielded, low EMI
DC-DC converter applications up to 1MHz
Filtering applications up to self-resonant frequency (SRF)
0.68μH to 68μH inductance range
2.3A to 30A current range
11.2mm x 10.3mm surface-mount package with 5mm height
Moisture sensitivity level (MSL) 1
Alloy powder core material
Advanced driver assistance systems (ADAS)
Infotainment and cluster electronics
Chassis and safety electronics
Engine and powertrain systems
Coiltronics / Eaton HCM1AV2 Automotive High-Current Power Inductors
Designed to meet automotive electronics power and thermal handling requirements.
