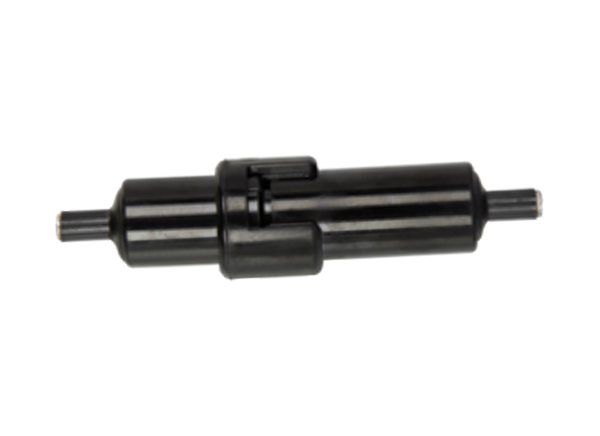

Bussmann / Eaton HVI Water-Resistant Fuse Holders
Bussmann / Eaton HVI Water-Resistant Fuse Holders offer a 600V voltage rating, 20A current, and IP54 rating for exposed locations. HVI fuse holders accept 16AWG to 12AWG copper wire and feature in-line connection and copper crimp lead material. These fuse holders are for use with 6.3mm x 32mm (1/4" x 1-1/4") fuses. Bussmann / Eaton HVI Water-Resistant Fuse Holders are E14853 UL recognized and have a +150°C temperature rating.
Features
- For 6.3mm x 32mm (1⁄4” x 1-1⁄4”) fuses
- IP54 rating for exposed locations
- Accepts #16 to #12 AWG copper wire
- Copper crimp lead material
- High temperature, flame retardant, phenolic meets UL 94 HB
- Crimp or 1/4” quick connect terminals
- In-line connection

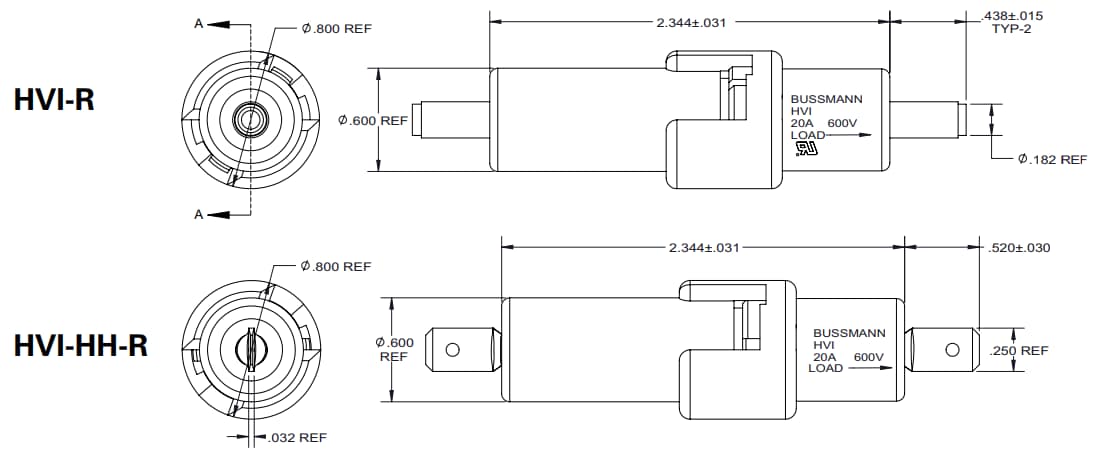

Dimensions-Inches
