Califia Lighting Coastline C5000/C5400 Linear LEDs

Califia Lighting Coastline C5000/C5400 Hi-Power Linear LEDs deliver high brightness performance in a very low-profile aluminum housing. These track-compatible luminaires are suitable for all commercial and industrial applications that include banks, restaurants, retail, enclosures, and medical test labs. The Coastline C5000/C5400 LEDs are available with track kits and can easily be extended to longer lengths and at 90˚angles for corner mounting.

Features

  • HB (High-Brightness) LEDs
  • Instant ON
  • Low-profile
  • Long life (C5000)
  • Built-in dimmer
  • Narrow beam (C5400)
  • No UV
  • Mercury-free
  • Lead-free

Specifications

  • 50000-hours rated life
  • 5W power consumption
  • 0°C to 40°C operating temperature range
  • 24VDC input voltage
  • Extruded Aluminium (black) and polycarbonate reflector (black) housing
  • C5000:
    • 120° beam angle
    • 91g weight
  • C5400:
    • 35° beam angle
    • 125g weight

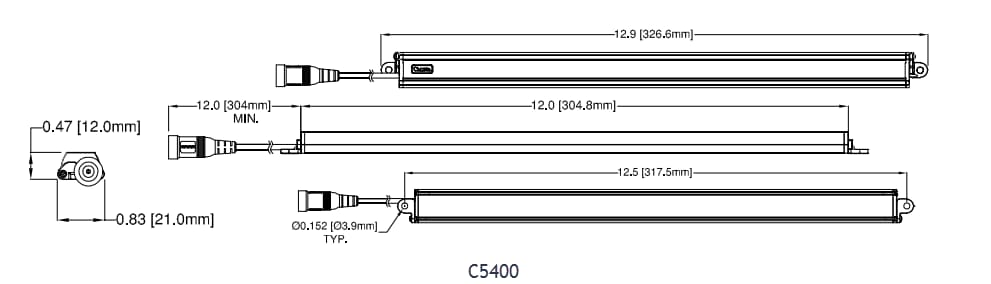

Mechanical Diagram

Mechanical Drawing - Califia Lighting Coastline C5000/C5400 Linear LEDs
Mechanical Drawing - Califia Lighting Coastline C5000/C5400 Linear LEDs

Associated Product

Hi-Power Linear LED Accessories

Califia Lighting Hi-Power Linear LED Accessories

Include various power supplies with adapter plugs, in-line on/off switches, and live end feeder.
