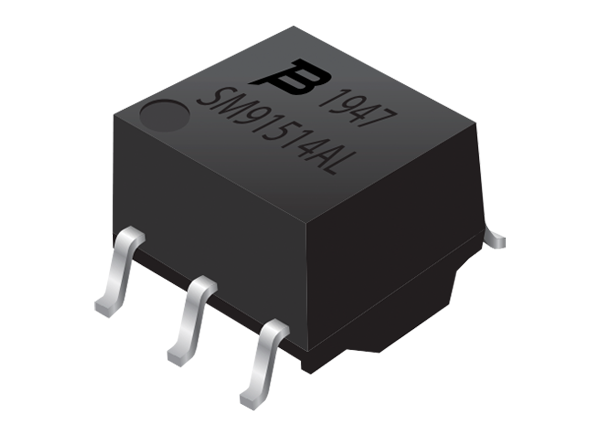

Bourns SM91514AL BMS Transformer
Bourns SM91514AL Battery Management System (BMS) Transformer is AEC-Q200 compliant and includes common mode chokes for noise rejection in BMS applications. This single-channel functional insulation transformer features full automation of each key manufacturing process, including pin winding and laser stripping. It offers a working voltage up to 1000VDC and Hi-Pot isolation voltage up to 4300VDC. It supports serial daisy chain / IsoSPI communication and has an expanded operating temperature range of -40°C to +125°C. Bourns SM91514AL BMS Transformer is developed for use with the NXP MC33771C series and the Maxim Max17853 IC.
Features
- Superior quality from full automation of key processes
- Up to 1000VDC working voltage and Hi-Pot isolation voltage up to 4300VDC
- Supports serial daisy chain / IsoSPI communication
- Developed for use with NXP MC33771C series and Maxim Max17853 IC
- Expanded -40°C to +125°C operating temperature range
- AEC-Q200 and RoHS compliant
Applications
- Battery management systems
- Energy storage systems
Related Products
Bourns Battery Management System
Connects to high-energy battery packs and manages the charging and discharging of the pack.
