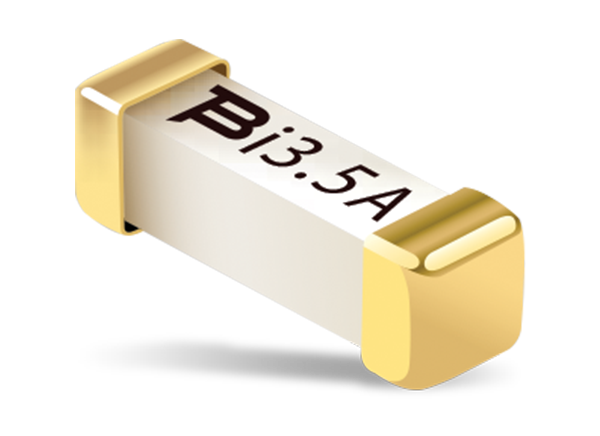

Bourns SinglFuse™ SF-3812TL-T Low Power SMD Fuses
Bourns SinglFuse™ SF-3812TL-T Low Power SMD Fuses achieve a 250VAC voltage rating, a 0.5 to 5A current range, and are RoHS compliant. Bourns SF-3812TL-T is a single blow fuse for overcurrent protection and features surface-mount packaging for automated assembly. Bourns SinglFuse SF-3812TL-T Low Power SMD Fuses are intended for use in a variety of power and lighting applications, including AC/DC converters, power supplies, power adaptors, telecom equipment system power, and LED lighting.
Features
- Single blow fuse for overcurrent protection
- EIA 3812 (10030 metric) footprint
- Ceramic tube wire-in-air design for time-lag fusing speed and low power applications
- Surface-mount packaging for automated assembly
- UL 248-14 listed
- Meets IEC 60127-1 and IEC 60127-7 requirements
- RoHS compliant
Applications
- Lighting systems
- Power adapters
- Power supplies
- AC/DC converters
- Telecom equipment system power
Specifications
- 250VAC rated voltage
- 0.5A to 5A rated current range
- 0.01Ω to 0.5Ω resistance range
- -55°C to +125°C operating temperature range
Dimensions (MM)
