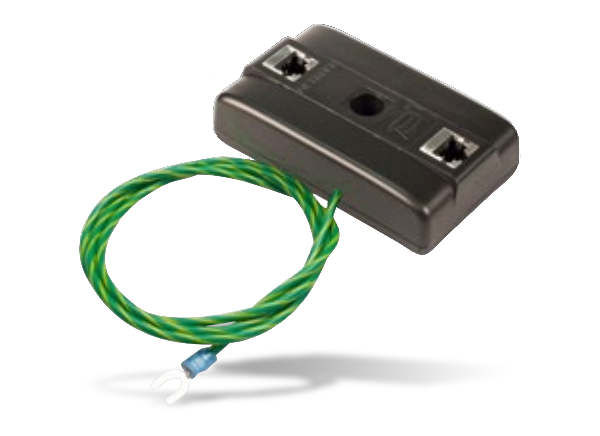

Bourns 1530-1 PoE Ethernet Surge Protectors

Bourns Model 1530-1 Series Commercial PoE Ethernet Surge Protectors incorporate state-of-the-art gas discharge tube and surge limiting technologies to provide the highest protection level offered by Bourns. The Model 1530-1 Series is designed to meet applicable Telcordia GR-1089 Level 1 and Level 2 Surge and AC Power Fault specifications on the data signal line while allowing operations up to 35W (employing both Mode A and B combination) at 57V. The Model 1530-1 Series enclosure is flame retardant and manufactured with a high impact resistant plastic.


  • GDT-TBU® High-Speed Protector technology
  • Low impulse voltage let-through
  • Low impulse current let-through
  • High surge current rating
  • 10/100/1000Mbps data compatibility
  • Transparent to Mode A or Mode B
  • Compatible with Class 4 power levels
  • UL Listed per E153537 Vol 2 Sec 2


  • 150V typical input/7V typical output DC breakdown on data lines
  • <200V typ. DC breakdown - power lines
  • 35W power rating
  • ~6Ω typ. line series resistance (loop)
  • 0.5Ω typ./1.0Ω max. line series balance
  • 10pF typ. capacitance line to line @ 1MHz


  • Data communications
  • Highly exposed Ethernet
  • Telecommunication and indoor industrial installations
  • Surveillance cameras
  • Remote power and communication
