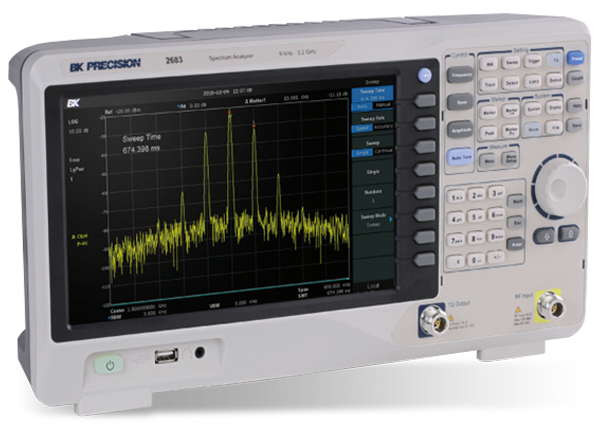

B&K Precision 2680 Spectrum Analyzers

B&K Precision 2680 Spectrum Analyzers provide a standard pre-amplifier and tracking generator with a frequency range of 9kHz to 2.1GHz or 3GHz. These analyzers help in visualizing the waveform and make precision measurements such as occupied bandwidth, third-order intercept, and 2D and 3D spectrum monitor. Additional features include low phase noise, high sensitivity, 1Hz minimum resolution bandwidth (RBW), low-level uncertainty, widescreen color display, as well as LAN and USBTMC connectivity. B&K Precision 2680 Spectrum Analyzers are ideal for two-way radio, EMI pre-compliance, site surveying, and characterizing the frequency response of RF devices.

Features

  • 10.1" widescreen 1024 x 600 color display
  • LAN and USBTMC connectivity
  • USB host port to store and recall waveform data, setups, and screen captures
  • 9kHz to 2.1GHz or 3.2GHz frequency range
  • 1Hz minimum RBW
  • High sensitivity of 161dBm/Hz displayed average noise level (DANL)
  • Low phase noise of -98dBc/Hz at 10kHz offset
  • Low-level uncertainty of ±0.7dB
  • Preamplifier and tracking generator are standard

Applications

  • 2-way radio
  • EMI pre-compliance
  • Site surveying
  • Reflection measurement
  • Characterizing the frequency response of RF devices.

Front Panel

B&K Precision 2680 Spectrum Analyzers

Side & Rear Panel

B&K Precision 2680 Spectrum Analyzers
