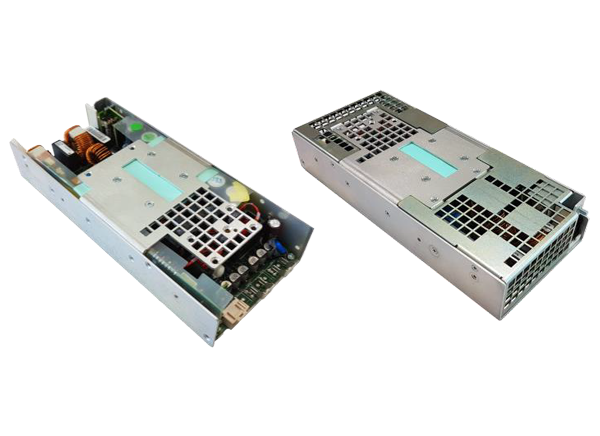

Bel Power Solutions ABE1200 1200W Industiral AC-DC Power Supplies

Bel Power Solutions ABE1200 Series Industrial AC-DC Power Supplies provide up to 1200W of regulated output power. The units have a wide input voltage range of 85VAC to 305VAC in single outputs of 24VDC or 48VDC. The series is available in three compact 1U height compatible packages: U-chassis, protective cover, and enclosed. The ABE1200 Series supports digital power management over the power management bus communications protocol. Multiple units can be connected in parallel for redundancy and/or higher power, enabled with the internal ORing and current sharing functions. Bel Power Solutions ABE1200 Series 1200W Industrial AC-DC Power Supplies comply with the latest international safety standards and display the CE-Mark for the European low voltage directive (LVD).


  • Remote On/Off signal
  • Low earth/touch leakage current
  • Fan speed control function
  • Power management Bus communication protocol supported
  • Built-in current sharing and ORing for parallel operation and N+1 redundancy
  • IEC 60950-1 ITE safety approval
  • UL 8750 LED lighting approval


  • Video wall display, entertainment lighting
  • LED lighting engine
  • Industrial control systems
  • Industrial laser applications


  • 85VAC to 305VAC universal input voltage range
  • 1200W rated power
  • Up to 94%  high efficiency
  • 24VDC, 48VDC standard output voltages
  • Stand by +12V, 0.5A and auxiliary 5V, 1A outputs
