Bel Power Solutions ABC401 400W Industrial AC-DC Power Supplies

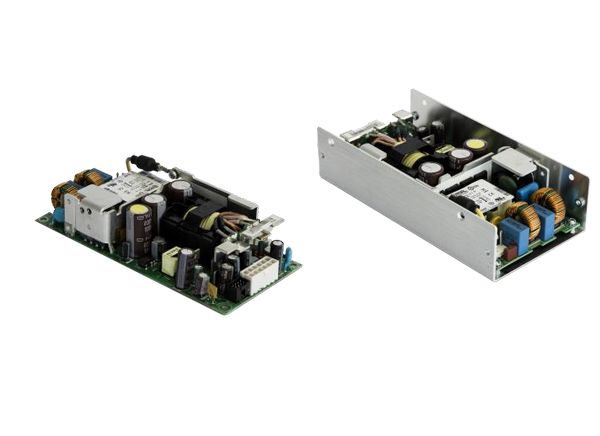

Bel Power Solutions ABC401 Series Industrial AC-DC Power Supplies provide up to 400W of regulated output power. The units have a wide input voltage range of 90VAC to 264VAC in single outputs of 12VDC, 24VDC, 28VDC, 36VDC, or 48VDC. The series is available in five different low-profile packages, open frame, U-chassis, perforated cover, vented cover, and enclosed. Bel Power Solutions ABC401 Series 400W Industrial AC-DC Power Supplies comply with the latest international safety standards for IT equipment and display the CE-Mark for the European low voltage directive (LVD).
Features
- Remote On/Off and power good signal
- Low earth/touch leakage current
- 5 available packages all fit 1U installation
- IEC/EN/UL 60950-1 compliance
- EN55024 immunity
- EN55032, FCC Class B, conducted radiated emissions
Applications
- Video wall display and entertainment
- Industrial process control
- Telecommunications
- Test and measurement equipment
- Industrial laser applications
- 3D printing
- ATMs
Specifications
- 90VAC to 264VAC universal input voltage range
- 400W rated power (440W peak)
- Up to 94% high efficiency
- 12VDC, 24VDC, 28VDC, 36VDC, 48VDC standard output voltages
- Stand by +5V, 2A and auxiliary 12V, 1A outputs
