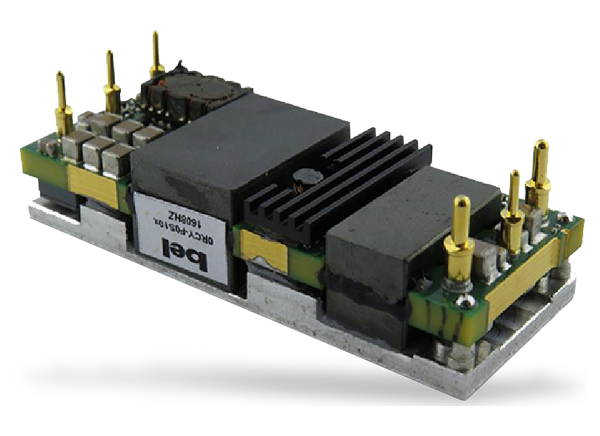

Bel Power Solutions 0RCY-F0S10x Isolated DC/DC Converter
Bel Power Solutions 0RCY-F0S10x Isolated DC/DC Converter is ideal for powering non-isolated point-of-load (PoL) converters. The 0RCY-F0S10x converter operates from a nominal 50V/54V source and provides the isolation and step-down needed to generate a regulated intermediate bus. This module provides up to 500W of output power, and the output features a droop function. The 0RCY-F0S10x is available in a compact 1/8 brick package. Typical applications include networking, computers and peripherals, and telecommunications.
Features
- Output / 1/8th brick converter
- Isolated
- Parallel operation
- High efficiency
- High power density
- Input undervoltage lockout
- Overcurrent, short-circuit, output overvoltage, and overtemperature protection
- Remote On/Off
- RoHS compliant
Applications
- Networking
- Computers and peripherals
- Telecommunications
Specifications
- 45VDC to 56VDC input / 10.2VDC at 49A output
- 300kHz fixed frequency
- Approved to UL/CSA 60950-1, 2nd +A2 version (pending)
