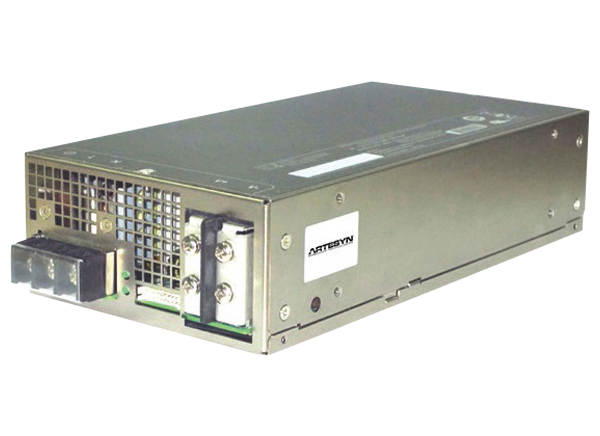

Artesyn Embedded Technologies LCM1500 Bulk Front Ends

Artesyn Embedded Technology LCM1500 Bulk Front End offers 1500W single output power at 12V to 48V and 12W per cubic inch. The LCM1500 features high efficiency (89% typical), variable speed smart fans, margin programming, and ±10% adjustment range. These components are ideal for medical and industrial applications.

Features

  • 1500W output power
  • Measures 2.5" x 5.2" x 10.0"
  • 12W per cubic inch
  • -40°C to +70°C with derating
  • Optional 5V @ 2A housekeeping
  • High efficiency: 89% typical
  • Variable speed smart fans
  • DSP controlled
  • Conformal coat option
  • ±10% adjustment range
  • Margin programming
  • OR-ing FET

Specifications

  • Input range: 90-264Vac (Operating)
  • 115/230Vac (Nominal)
  • TERMINAL BLOCK
  • Frequency: 47-440Hz, Nominal 50/60
  • Input fusing: Internal 20A fuses, both lines fused
  • Inrush current: ≤25A peak, either hot or cold start
  • Power factor: 0.99 typical, meets EN61000-3-2
  • Harmonics: Meets IEC 1000-3-2 requirements
  • Input current: 18A RMS max input current, at 100VAC
  • Hold up time: 20ms minimum for Main O/P, at full rated load
  • Efficiency: >91% typical at full load/230Vac nominal
  • Leakage current: <0.3mA at 264Vac
  • Power line transient: MOV directly after the fuse
  • Isolation: PRI-Chassis 2500 Vdc Basic
  • PRI-SEC 4000 VAC Reinforced 2xMOPP
  • SEC-Chassis 500Vdc

Applications

  • Medical
  • Industrial
