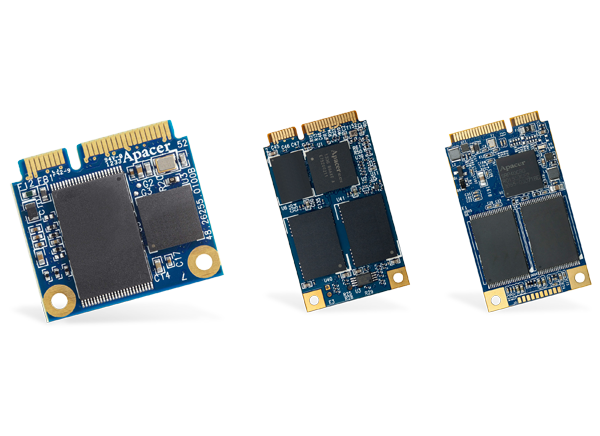

Apacer Technology Inc. mSATA SSD Drives

Apacer mSATA Solid State Disk (SSD) Drives are designed using the SATA 6.0Gbps interface and deliver exceptional read/write speeds. Developed with flash management features, the mSATA SSD Drives ensure highly reliable and efficient processing in a wide range of applications. These flash management features include a powerful hardware ECC engine, power-saving modes, wear leveling, flash block management, S.M.A.R.T., TRIM, and power failure management. The Apacer mSATA SSD Drives are well-suited for heavy-loading embedded or server operations in host computing systems with space constraints.

Features

Compliance with SATA Revision 3.1
- SATA 6.0Gbps interface
- Backward compatible with SATA 1.5 and 3.0Gbps interfaces
- Compliant with JEDEC MO-300/MO-300B
Flash management
- Built-in hardware ECC
- Static/dynamic wear leveling
- Flash bad-block management
- S.M.A.R.T.
- Power failure management
- ATA secure erase
- TRIM

Endurance
- 8GB: 17TBW
- 16GB: 34TBW
- 32GB: 68TBW
- 64GB: 136TBW
- 128GB: 272TBW
- 256GB: 545TBW
3.3V ±5% supply voltage
Shock and vibration:
- 1,500G shock
- 15G vibration
SATA power management modes
