Analog Devices Inc. LTC388x Step-Down Controllers
Analog Devices Inc. LTC388x Step-Down Controllers are dual PolyPhase DC-DC synchronous step-down switching regulator controllers. Analog Devices LTC388x devices have an I2C-based PMBus-compliant serial interface. These controllers employ a constant-frequency, current-mode architecture with high-voltage input and output capability. The devices also have a programmable loop compensation and are supported by the LTpowerPlay™ software development tool with a graphical user interface (GUI).
Features
- PMBus/I2C compliant serial interface
- Telemetry read-back includes VIN, IIN, VOUT, IOUT, temperature, and faults
- Programmable voltage, current limit, digital soft-start/stop, sequencing, margining, OV/UV/OC, frequency, and control loop compensation
- Output error less than ±0.5% over temperature
- Integrated 16-bit ADC and 12-bit DAC
- Integrated high-side current sense amplifier
- Internal EEPROM with ECC and fault logging
- Integrated N-channel MOSFET gate drivers
- 5V to 60V wide VIN range
- 1V to 40V VOUT0, VOUT1 range
- Analog current mode control
- Accurate PolyPhase® current sharing for up to 6 phases (85kHz to 500kHz)

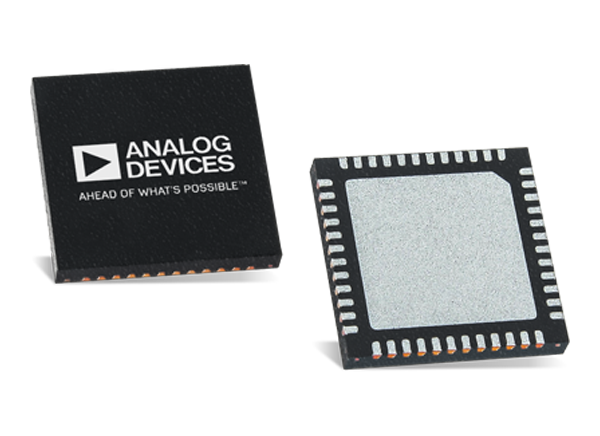

- Available in a 52-lead (7mm × 8mm) QFN package
Applications
- Telecom, datacom, and storage systems
- Industrial and Point of Load
Development Tools
Analog Devices Inc. LTC3882 Demo Board DC1936A
Evaluation board featuring a synchronous buck converter example circuit based on the LTC3882EUJ IC.
Analog Devices Inc. LTC3882 Demo Board DC2252A-A
Enables programing and verification of the EEPROM inside the LTC3882 PolyPhase DC-DC PMIC.
Analog Devices Inc. LTC3882EUJ Demo Board DC2291A
Evaluation board featuring a PolyPhase buck converter example circuit based on the LTC3882EUJ PMIC.
Analog Devices Inc. LTC3882 Demo Board DC2252A-B
Enables programing and verification of the EEPROM inside the LTC3882-1 PolyPhase DC-DC PMIC.
Analog Devices Inc. LTC3883 Demo Board DC1890A
Contains the circuitry needed to program and verify the EEPROM of the LTC3883 and LTC3883-1.
Analog Devices Inc. LTC3884 Demo Board DC2084A
High efficiency, high density, single-output buck converter with a 10V to 14V input voltage range.
Analog Devices Inc. LTC3884 Demo Board DC2291A
Designed to program and verify the EEPROM of the LTC3884 UK package programming board.
Analog Devices Inc. LTC3874-1 Demo Board DC2605A
Designed to evaluate the performance of LTC3884-1 synchronous buck converter.
Analog Devices Inc. DC2888A Demo Boards
Engineered based on the LTC388x step-down controllers.
Typical Application
