Analog Devices Inc. LT8584 Monolithic Flyback DC/DC Converter

Analog Devices LT8584 Monolithic Flyback DC/DC Converter is designed to actively balance high voltage stacks of batteries. The high efficiency of a switching regulator significantly increases the achievable balancing current while reducing heat generation. Active balancing also allows for capacity recovery in stacks of mismatched batteries, a feat unattainable with passive balance systems. In a typical system, greater than 99% of the total battery capacity can be recovered.

The LT8584 includes an integrated 6A, 50V power switch, reducing the design complexity of the application circuit. The part runs completely off of the cell which it is discharging, removing the need for complicated biasing schemes commonly required for external power switches. The enable pin (DIN) of the part is designed to work seamlessly with the LTC680x family of battery stack voltage monitoring ICs. LT8584 also provides system telemetry including current and temperature monitoring when used with the LTC680x family of parts. When the LT8584 is disabled, less than 20nA of total quiescent current is typically consumed from the battery.


  • 2.5A Typical Average Cell Discharge Current
  • Integrated 6A, 50V Power Switch
  • Integrates Seamlessly with LTC680x Family: No Additional Software Required
  • Selectable Current and Temperature Monitors
  • Ultra-Low Quiescent Current in Shutdown
  • Engineered for ISO 26262 Compliant Systems
  • Isolated Balancing
    • Can Return Charge to Top of Stack
    • Can Return Charge to Any Combination of Cells in Stack
    • Can Return Charge to 12V Battery for Alternator Replacement
  • Can Be Paralleled for Greater Discharge Capability
  • All Quiescent Current in Operation Taken from Local Cell

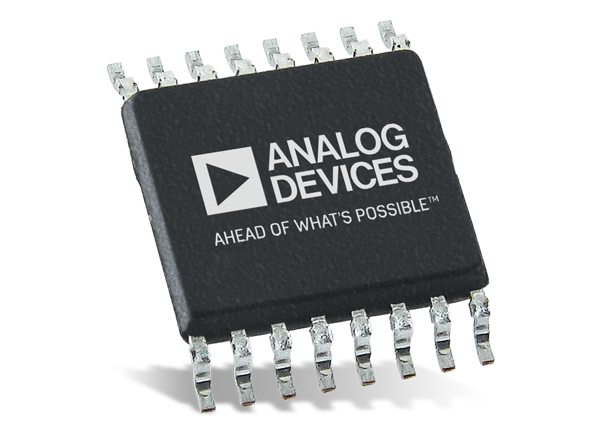

  • 16-Lead TSSOP Package


  • Active Battery Stack Balancing
  • Electric and Hybrid Electric Vehicles
  • Fail-Safe Power Supplies
  • Energy Storage Systems

Typical Application

Application Circuit Diagram - Analog Devices Inc. LT8584 Monolithic Flyback DC/DC Converter
