Analog Devices Inc. EVAL-CN0338-ARDZ Shield Board

View Details
More About Analog Devices Inc.

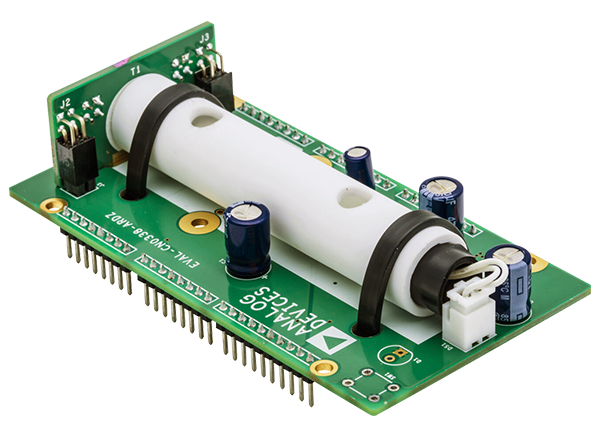

Analog Devices Inc. EVAL-CN0338-ARDZ Shield Board is a Non-Dispersive Infrared (NDIR) carbon dioxide detector reference design. The Shield Board includes a thermopile sensor, lamp, and light tube. This design interfaces directly with the dual 24-bit sigma-delta converters on the EVAL-ADICUP360.

The ADI EVAL-CN0338-ARDZ Shield is optimized for CO2 sensing but can accurately measure the concentration of many gases by using thermopiles with different optical filters.
