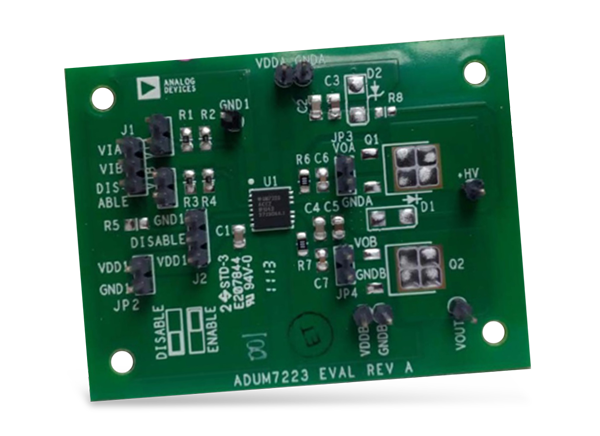

Analog Devices Inc. EVAL-ADuM7223EBZ Evaluation Board
Analog Devices Inc. EVAL-ADuM7223EBZ Evaluation Board is used to evaluate the ADuM7223 4A, isolated precision half-bridge driver. The ADuM7223 can be evaluated with many different power devices because the boards have footprints for IGBTs and MOSFETs in TO-252 packages. The boards from Analog Devices also allow the high-side supply to be bootstrapped to the low-side supply.
Features
- 4A peak output current
- 1MHz maximum frequency operation
- CMOS input logic levels
- 4.5V to 18V output drive
- Supports TO-252 IGBT/MOSFETs
- Bootstrap option
- SUPPORTED iCoupler MODELS
- ADuM7223A
- ADuM7223B
- ADuM7223C
Related Products
Analog Devices Inc. ADuM7223 Isolated Precision Half-Bridge Driver
Reliable control over switching characteristics of IGBT/MOSFET configurations.
