Analog Devices Inc. EVAL-ADuM4135 Evaluation Board

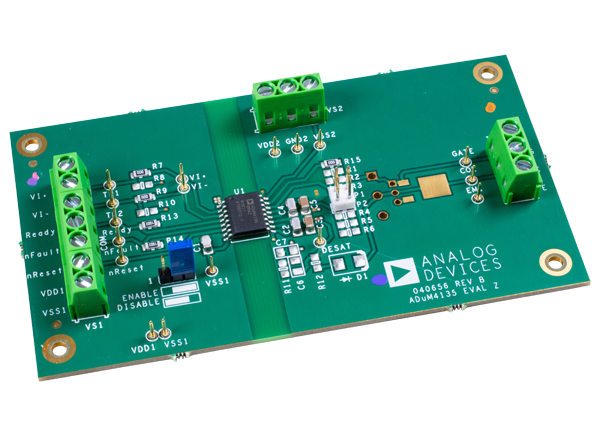

Analog Devices EVAL-ADuM4135 Evaluation Board helps designers evaluate the features of the ADuM4135 single/dual-supply high-voltage isolated IGBT gate driver with an integrated miller clamp. The evaluation board features footprints for insulated gate bipolar transistors (IGBTs) and metal oxide semiconductor field-effect transistors (MOSFETs) in TO-252, TO-220, and 0.100" spaced lead packages. The footprints are also designed to facilitate the evaluation of ADuM4135's desaturation detection, as well as the Miller clamp operation.
Features
- 4A peak output current
- Desaturation protection circuitry
- Integrated Miller clamp
- CMOS input logic levels
- 12V to 30V output drive
- Supports multiple IGBT/MOSFET footprints
- Bootstrap option
Block Diagram
Learn More About
Analog Devices Inc. ADuM4135 High-Voltage Isolated IGBT Gate Driver
Single/dual-supply high-voltage isolated IGBT gate driver with miller clamp.
Analog Devices Inc. Interface & Isolation Products
Offers Interface and Isolation products including digital isolators, transceivers, and isolated ADCs
Analog Devices Inc. Motor Control Solutions
The components and full signal chain integration to enable rapid design of motor-based systems.
