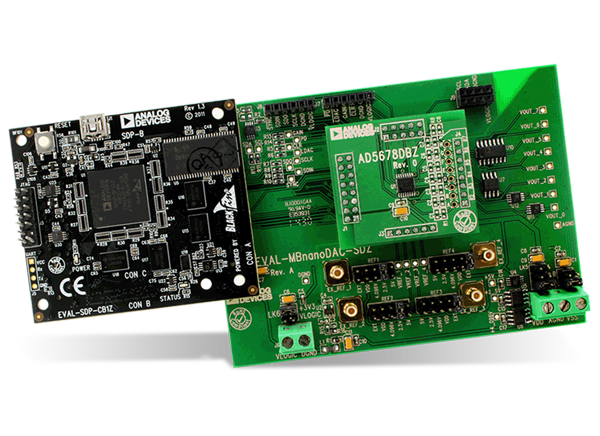

Analog Devices Inc. EVAL-AD5678 Evaluation Board helps designers prototype new circuits for the AD5678 octal channel, voltage-output DACs. The EVAL-AD5678 Evaluation Board interfaces to a PC's USB port via the controller board. Connecting the evaluation board to the SDP-B controller board enables designers to configure and capture data on daughter boards. When connected, the EVAL-AD5678DBZ evaluation software from Analog Devices enables designers to program the AD5678 DAC.
Lets designers prototype new circuits for AD5678 DACs
Connecting eval board to SDP-B controller board enables configuring, capturing data on daughter boards
Interfaces to a PC's USB port via the controller board
EVAL-AD5678DBZ evaluation software enables designers to program AD5678
