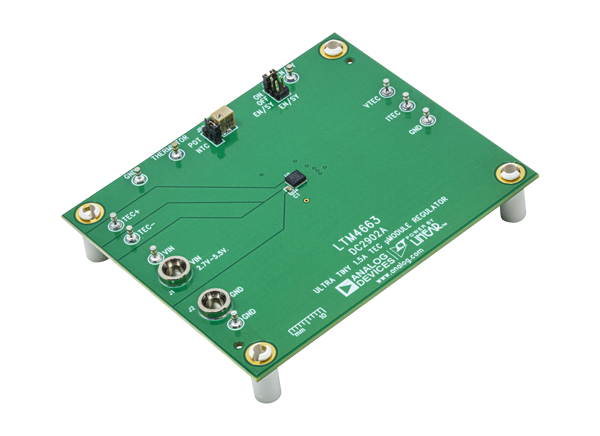

Analog Devices Inc. LTM4663 Demo Board DC2902A
Analog Devices Inc. LTM4663 Demo Board DC2902A is configured to evaluate the operation of the LTM4663 μModule regulator. The LTM4663 Ultrathin μModule® Thermo-Electric Cooler (TEC) Regulator combines a TEC controller, linear power stage, switching regulator, inductor, and all support components in a tiny LGA package.
The Analog Devices Inc. DC2902A Evaluation Board features a 2.7V to 5.5V input voltage range and can deliver up to 1.5A of sinking or sourcing current. Inside the LTM4663, a linear power stage works together with a PWM power stage to form an H-bridge configuration. The direction of the current fed through the TEC can be either positive (for cooling mode) or negative (for heating mode).
Furthermore, the DC2902A Board offers a default 2MHz switching frequency and can be synchronized to an external clock from 1.85MHz to 3.25MHz applied to the EN/SY input pin (JP1: EN/SY). The maximum TEC current limit can be programmed with a resistor, R7 (default: 1.5A for cooling mode; -1.5A for heating mode), and the maximum TEC voltage limit can be programmed with a resistor, R10 (default: 5V for cooling mode; -4.8V for heating mode). Additional features include VTEC output for TEC voltage monitor and ITEC output for TEC current monitor.
Specifications
- 2.7V to 5.5V Input voltage range
- 1.5A Maximum TEC current cooling mode
- –1.5A Maximum TEC current heating mode
- 2MHz Typical switching frequency
- 88.6% Typical efficiency cooling mode, VIN = 5V, ITEC = 1.5A, 2Ω load
- 89.1% Typical efficiency heating mode, VIN = 5V, ITEC = -1.5A, 2Ω load
