Analog Devices Inc. DC2654A Daughter Board

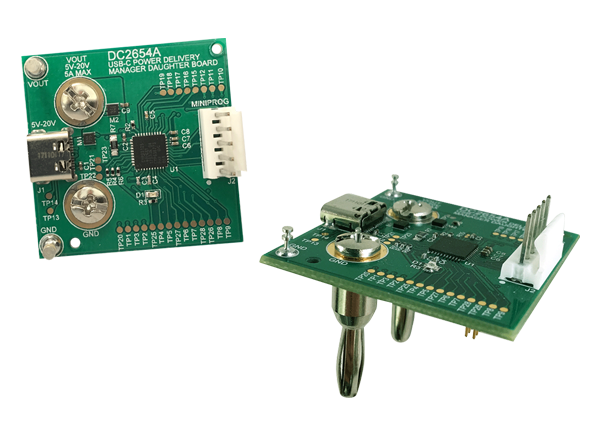

Analog Devices Inc. DC2654A Daughter Board features the EZ-PD™ CCG3 USB Type-C Port Controller IC designed by Infineon Technologies. The DC2654A is a daughterboard meant to interface with some of ADI power product demonstration circuits to demonstrate their compatibility with the USB Type-C Power Delivery specification.
The ADI DC2654A Daughter Board offers a default program that negotiates a USB Power Delivery profile and chooses the highest voltage advertised by the power adapter plugged into the board. The program then turns on the power switches to power the main PCB through the banana plugs for a low-impedance connection. Required digital information is transferred through header J3 passed between boards.
Associated Products
Analog Devices Inc. LTC4162 Step-Down Battery Chargers
Highly-integrated high-voltage, multi-chemistry sync monolithic chargers with PowerPath™ manager.
Infineon Technologies EZ-PD™ CCG3PA USB Type-C™ Controller
Highly-integrated single chip USB Type-C solution with Power Delivery.
