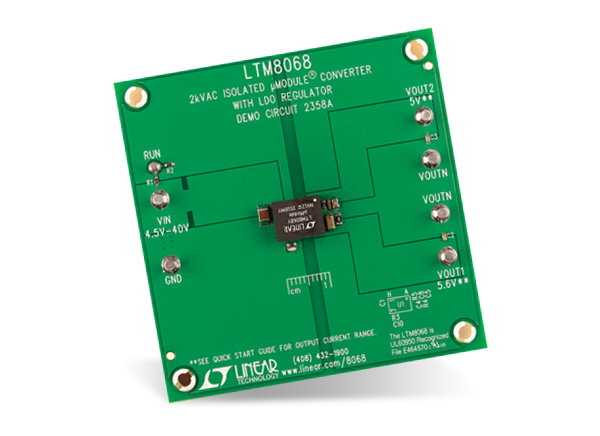

Analog Devices Inc. LTM8068 Demo Board DC2358A
Analog Devices LTM8068 Demo Board DC2358A is designed to help the user evaluate the performance of the LTM8068 2kVAC Isolated μModule® DC-DC Converter. The DC2358A Demo Board features an application design based on the LTM8068 μModule DC-DC Converter. The two-stage converter offers isolated flyback output and a low-noise LDO output. Analog DevicesThe DC2358A Demo Board supports 5.6V flyback output and 5V post-regulator output using a 4.5V to 40V input voltage.
Features
- Based on the LTM8068 2kVAC Isolated μModule DC-DC Converter
- 5.6V flyback output
- 5V post regulator output from a 4.5V to 40V input
- 5.6V flyback output varies with input voltage from about 200mA at 4.5VIN to about 460mA at 40VIN
- 5V LDO output is limited by either the current capability of VOUT1 minus VOUT1 loading or the 300mA current limit on the LDO post regulator
Schematic
Supported Device
Analog Devices Inc. LTM8067 & LTM8068 μModule® DC/DC Converters
Includes the switching controller, power switches, transformer, LDO, and all support components.
