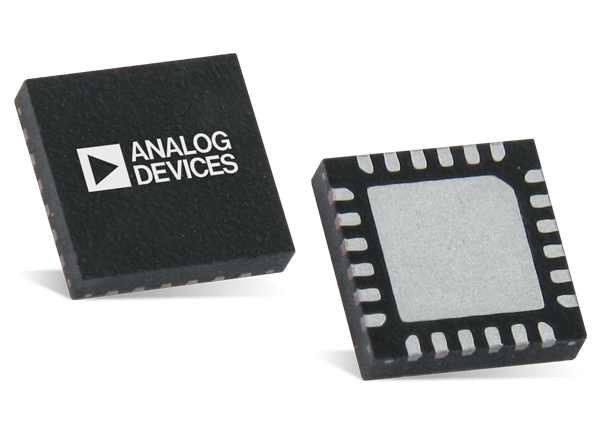

Analog Devices Inc. ADRF5130 Silicon SPDT Reflective Switches
Analog Devices Inc. ADRF5130 Silicon Single-pole, Double-throw (SPDT) Reflective Switches are high-power switches operating from 0.7GHz-3.5GHz. The ADRF5130 Switches have high power handling capabilities of 43dBm (maximum), a low insertion loss of 0.6dB, input third-order intercept of 68dBm (typical), and 0.1dB compression (P0.1dB) of 46dBm. The on-chip circuitry operates at a single, positive supply voltage of 5V and a typical supply current of 1.06mA. This makes the ADRF5130 from Analog Devices an ideal alternative to pin diode-based switches. With a 44W peak, the ADRF5130 Switches are ideal for high power and cellular infrastructure applications such as long-term evolution (LTE) base stations.
Features
- Reflective, 50Ω design
- 0.6dB typical to 2GHz insertion loss
- 50dB typical to 2GHz isolation rating
- High Power Handling
- RF input power, continuous wave (CW) at TCASE = +85°C
- 43dBm maximum operating
- 46.5dBm absolute maximum rating
- RF input power, continuous wave (CW) at TCASE = +85°C
- High Linearity
- 0.1dB compression (P0.1dB): 46dBm typical
- Input third-order intercept (IP3): 68dBm typical to 2GHz
- ESD Ratings
- Human body model (HBM): 2kV, Class 2
- Charged device model (CDM): 1.25kV
- VDD = 5V single positive supply
- Positive control, TTL-compatible: VCTL = 0V or VDD
- 24-lead, 4mm × 4mm LFCSP package (16mm²)
Applications
- Cellular/4G infrastructure
- Wireless infrastructure
- Test equipment
- Military and high-reliability applications
- Pin diode replacement
Functional Block Diagram
Associated Tool
Analog Devices Inc. EVAL-ADRF5130 Evaluation Board
Fully populated, RO4350-based eval board constructed of an 8-layer material for thermal management.
