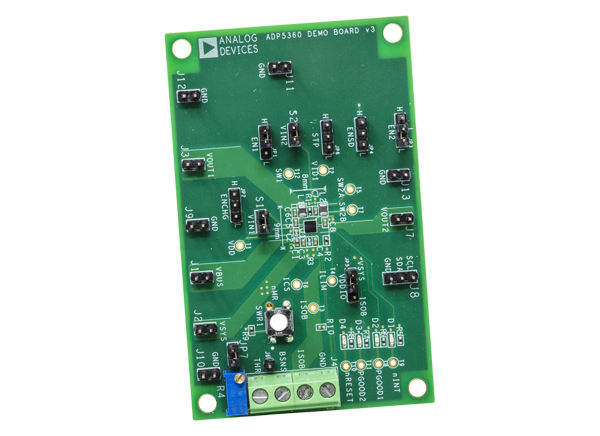

Analog Devices Inc. ADP5360CB-EVALZ Evaluation Board is designed to help evaluate the features and performance of the ADP5360, a battery management PMIC. The evaluation board supports an external USB dongle connection. It includes a graphic user interface (GUI) software that allows the user to evaluate the comprehensive functionalities provided by the I2C interface.
4.0V to 6.5V VBUS input voltage
Fully featured evaluation board for the ADP5360
Evaluation software and installation CD included
Simple device measurements and demonstrable with
A voltage power supply
A battery or battery simulator
A voltage meter
Load resistors or an electrical load
USB to I2C dongle USB-SDP-CABLEZ (not included in the evaluation kit and must be ordered separately)
Li-ion battery or battery simulator PC running Windows® 10 operating system
ADP5360 GUI tool software
Analog Devices Inc. ADP5360 Battery Management PMIC
Combines several functions that can monitor the output voltage for advanced battery management.
