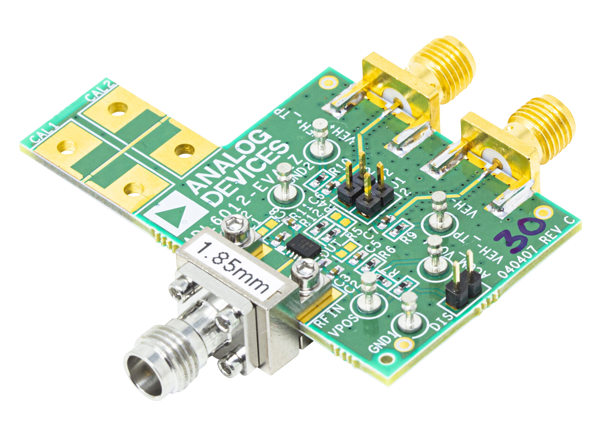

Analog Devices Inc. ADL6012-EVALZ Evaluation Board provides a demonstration and development platform for the ADL6012 2GHz to 67GHz Broadband Envelope Detector. The ADL6012 has fast rise time and fall time responses, around 1ns depending on input power levels, with an output envelope bandwidth of 500MHz. The ADL6012-EVALZ provides the basic connections for the RF input signal and the envelope output voltage. Differential envelope outputs on the ADL6012-EVALZ can be directly connected to a high-speed oscilloscope to evaluate the differential envelope tracking capabilities.
Fully featured evaluation board for the ADL6012
Specified up to 67GHz
3.15V to 5.25V operation
SMA connectors for RF IN, VEH+, and VEH-
Analog signal generator up to 67GHz (Agilent E8257D recommended)
