Analog Devices Inc. ADIS1647x Precision Mini Industrial IMUs

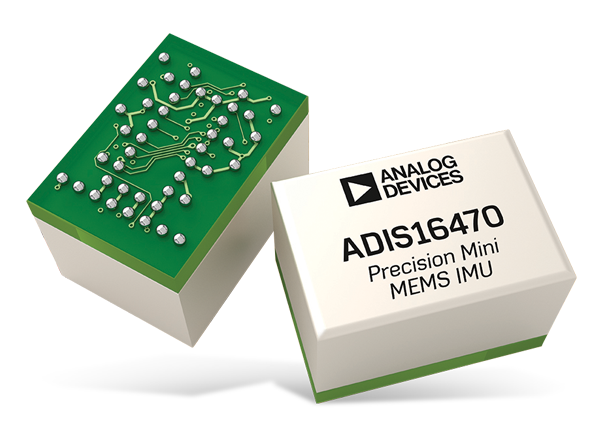

Analog Devices ADIS1647x Precision Mini Industrial IMUs provide a simple method of integrating a complete inertial system into industrial and Internet of Moving Things applications. The ADIS1647x Mini Industrial IMUs offer six-degree-of-freedom sensing using triple-axis accelerometers and gyroscopes housed in a small, standard surface-mount assembly package. Each of the ADIS1647x inertial sensors incorporates industry-leading iMEMS® technology and signal conditioning to optimize dynamic performance. Developed to meet the navigation- and safety-related demands of the Industrial "Internet of Moving Things", the ADIS1647x sensors are 100% tested and factory calibrated for sensitivity, bias, alignment, and linear acceleration (gyroscope bias). As a result, each sensor has its own dynamic compensation formulas for accurate sensor measurements. Implementing the ADIS1647x Precision Mini Industrial IMUs enable industrial systems to deliver highly precise navigation, guidance, and/or instrument stabilization regardless of wind, turbulence, vibration, temperature, and other environmental disturbances. ADIS1647x’s SPI and register structure provide a simple interface for data collection and configuration control.
Features
- High-performance IMUs in a small surface-mount package
- 11mm x 15mm BGA package
- Offers six-degree-of-freedom inertial sensing using triple-axis accelerometers and gyroscopes
- Factory calibration guarantees the best performance and eliminates the need for added system tests/calibration
- Embedded dynamic compensation and programmable operation and control
- Wide bandwidth and wide dynamic range to support a high dynamic motion
- Programmable internal filtering options
- Serial peripheral interface (SPI) compatible
Applications
- Navigation, stabilization, and instrumentation
- Unmanned and autonomous vehicles
- Smart agriculture and construction machinery
- Optical devices, antennas, and cameras
- Factory/industrial automation, robotics
- Virtual/augmented reality
- Internet of Moving Things
Specifications
- All condition stability
- 0.010dps/g linear vibration rejection
- 2000g powered shock survivability
- Highly stable over a temperature range of -40°C to +105°C
- Wide bandwidth:
- Gyroscope: 550Hz
- Accelerometer: 600Hz
- Wide dynamic range:
- Gyroscope: Up to 2000dps
- Accelerometer: Up to 40g
- High-performance inertial sensing capabilities
- Noise: <0.003°/s/√Hz, 23μg/rt-Hz
- 0.15°/rt-hr angular random walk
- 0.012 rn/sec/rt-hr velocity random walk
- Cross-axis alignment: 0.17%
- Single-supply operation: 3V to 3.6V
Family Summary
Additional Resources
Development Tools
Analog Devices Inc. IMU to Raspberry Pi Adaptor Board
Allows for easy plug and play connection of ADI's IMU devices to the Raspberry Pi platform.
Analog Devices Inc. EVAL-ADIS2Z Evaluation Board for ADIS1647x IMU
Allow for demonstration, individual register access, and high-speed data capture for ADIS1647x IMUs.
Analog Devices Inc. ADIS1647x/PCBZ Breakout Boards
Simplifies connecting the ADIS1647x IMUs to development platforms.
Related Products
Analog Devices Inc. iSensor MEMS Inertial Measurement Units
Multi-axis combinations of precision gyroscopes, accelerometers, magnetometers, & pressure sensors.
