Analog Devices Inc. AD-FMCOMMS8-EBZ Integrated RF Design

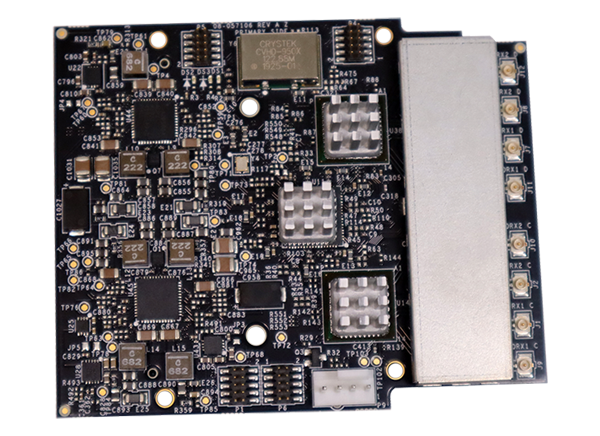

Analog Devices Inc. AD-FMCOMMS8-EBZ Integrated RF Design has two Analog Devices ADRV9009 wideband transceivers. It complies with VITA 57.1 mechanical dimensions 84mm × 69mm, but not full compliance with keep out areas. This standard allows for easy connection to a compatible FPGA development board that supports FMC HPC mechanical connector and JESD204B bus interface. It's used for prototyping with up to 4 Transmit and Receive channels that can be synchronized in phase and frequency. It can also be used with the ADRV9009-ZU11EG RF-SOM system allowing for 8-phase and frequency synchronized Transmit and Receive channels.


  • Quad transmitters
  • Quad receivers
  • Quad input Observation Receiver for DPD
  • Max Rx BW: 200MHz
  • Max Tunable Tx synthesis BW: 450MHz
  • Max Observation Rx BW: 450MHz
  • Tuning range: 75MHz to 6000MHz
  • Fully integrated fractional-N RF synthesizers
  • Multi-chip phase synchronization for all RF LO and baseband clocks
  • Includes schematics, layout, BOM, HDL, Linux drivers, and application software
  • Suitable for high channel density applications


  • 3G, 4G, and 5G TDD macrocell base stations
  • TDD active antenna systems
  • Massive multiple-input, multiple-output (MIMO)
  • Phased array radar
  • Electronic warfare
  • Military communications
  • Portable test equipment
