ams OSRAM AS6221-DK Demo Kit

ams OSRAM AS6221-DK Demo Kit offers an easy-to-use exploration of the AS6221 Digital Temperature Sensors. AS6221 Digital Temperature Sensors consist of a Si bandgap temperature sensor, an ADC, and a digital signal processor. The AS6221 Digital Temperature Sensors communicate via a 2-wire digital bus with other devices.

The AS6221-DK Demo Kit is Bluetooth enabled and uses a companion app from the App Store or Google Play Store to modify all sensor settings and observe the impact on power consumption and conversion rate. Up to three demos could be paired at the same time, allowing optimal settings for unique requirements. The app also enables a temperature sequence to be recorded to compare it with the temperature sensor's different settings. Additionally, the app does provide critical information about the product and helps to understand the alert mode's principles.

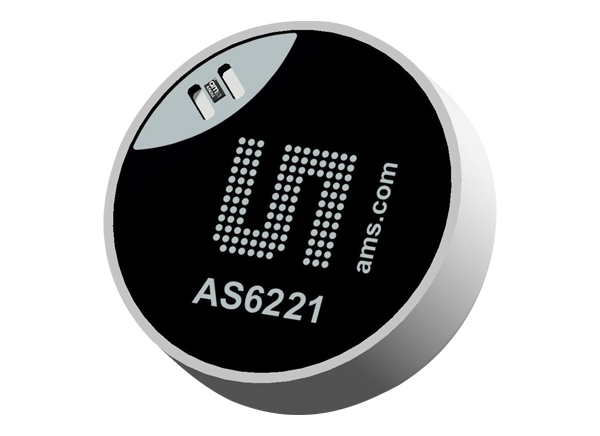

The AS6221-DK Demo Kit consists of an AS6221 temperature button and a CR2023 coin cell. By pulling the flap, the demo is enabled and ready to be paired with the app.

Note - The tablet is not included

Demo Kit Contents

ams OSRAM AS6221-DK Demo Kit
