Amphenol Sine Systems Armor IPX™ Circuit Board Enclosures
Amphenol Sine Systems Armor IPX™ Family of Sealed Enclosures protects printed circuit boards and electronic control modules in harsh environments and off-road applications. These enclosures are available in a variety of sizes and material types. Simplified installation is achieved via a rugged tandem through-hole design for ease of mounting and includes optional environmental venting. The electrical interface is designed with compact AT/ATM header systems featuring optional keying and sealed 90° molded pins. The snap-in headers quickly and securely attach to the Armor IPX enclosure and mate with standard AT Series™/ATM Series™ plugs. Amphenol Sine Systems Armor IPX sealed enclosures and AT/ATM Header Systems are compatible with industry-standard EEC enclosures. The enclosures meet IP68/69K ratings when mated with AT/ATM headers.
Features
- Standard or large size
- Intermatable with industry-standard connectors
- Optional header configurations
- 12, 24, 36, and 48 I/O (A, B, C, and D keying) of AT Series
- 12 and 24 I/O (A, B, C, and D keying) of ATM Series
- Rugged tandem through-hole design for ease of mounting
- Snap-in headers establish ease of interface with PCB
- Cross-hatch design increases venting protection
- Resistant to most fluids used in industrial applications
- Options
- Vented enclosures (environmental venting)

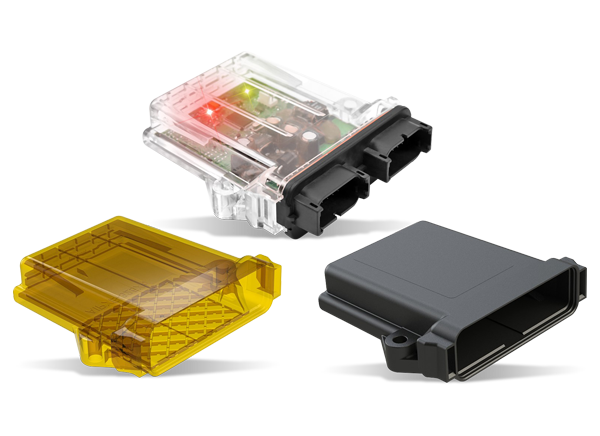

- Enclosures available in clear, black, or ULTEM® (transparent amber) material
- Tin-or gold-plated pins
- RoHS compliant
Specifications
- IP67/69K with header installed
- Contact resistance
- <6mΩ (AT headers)
- <10mΩ (ATM headers)
- >1000MΩ insulation resistance at +25°C
- Temperature range
- Clear enclosures: -40°C to +120°C
- Black and ULTEM enclosures, and AT/ATM headers: -55°C to +125°C
