Amphenol Socapex RJ11F/RJ11FTVX Harsh Environment Connectors

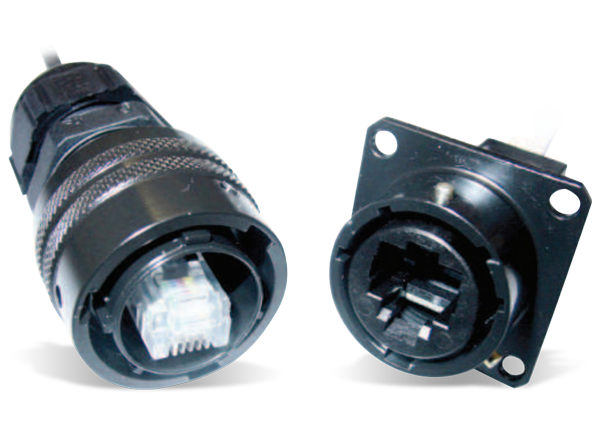

Amphenol Socapex RJ11F and RJ11FTVX Rugged Connection System allows the use of a standard phone RJ11 connection in harsh environments. With the patented RJStop® system a designer can use a standard RJ11 cordset with a metallic plug that will protect the cordset from shocks, dust, and fluids. No hazardous in-field cabling is required. Use the hand tool (RJ11FODE) for the insertion and removal of the receptacles and plugs.

The RJ11F connectors offer IP68 sealing, have an operating temperature range of -40°C to +85°C, and are constructed of robust metallic shells (MIL-DTL-26482H). The RJ11F connectors feature a bayonet coupling mechanism with an audible and visual coupling signal.

The RJ11FTVX series is ideal for use in Atex zone 2 environments. These explosion-proof connectors have an operating temperature range of -40°C to +60°C and offer a Tri-Star Thread coupling mechanism with an anti-decoupling device (MIL-DTL-38999 series III).


  • IP68 sealing
  • 500 mating cycles minimum
  • Operating temperature ranges
    • -40°C to +85°C for the RJ11F
    • -40°C to +60°C for the RJ11FTVX
  • Coupling mechanisms
    • Bayonet coupling for the RJ11F
    • Tri-Star thread with an anti-decoupling device for the RJ11FTVX
