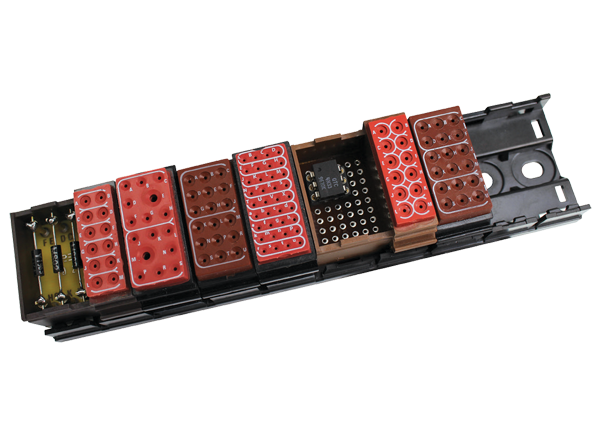

Amphenol Air LB France Shunted Distribution Modules
Amphenol Air LB France Shunted Distribution Modules feature a 2mΩ to 5mΩ contact resistance range, 5A to 46A current rating, and insulation resistance of 5000MΩ. These modules are easily mounted on rails due to a locking spring mechanism, allowing for quick and easy installation and maintenance. Shunted distribution modules operate in the -55°C to +175°C temperature range. Amphenol Air LB France Shunted Distribution Modules are ideal for commercial aerospace applications.
Specifications
- 1500VRMS dielectric withstanding voltage
- 5000MΩ insulation resistance
- 2mΩ to 5mΩ contact resistance
- 5A to 46A current range
- 1000h to 175°C endurance
- -55° to +175°C operating temperature range
Applications
- Commercial aerospace
- Commercial and mil avionics
