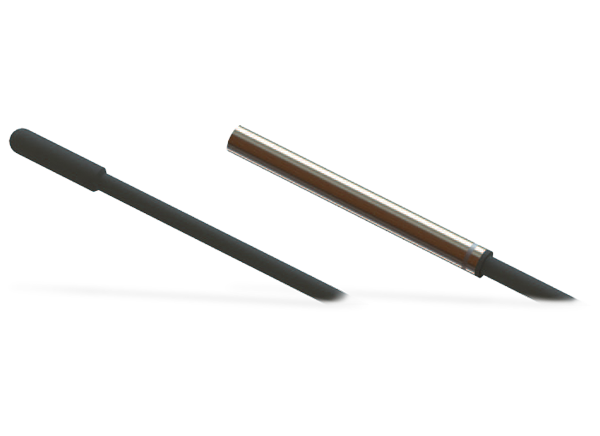

Amphenol Advanced Sensors JI and JIC Waterproof IP68 NTC Thermistors are molded onto a flexible circular cable. The tip and outer cable insulation material are designed with thermoplastic elastomer rubber and the tinned copper conductors feature individual polypropylene insulation. These thermistors come in wire lengths from 300mm to 5000mm, withstand freeze/thaw cycling, and operate within a -50°C to +105°C temperature range. The JI and JIC thermistors are used in ventilation, refrigeration, heat pumps, and weather stations.
Waterproof to IP68
Withstands freeze/thaw cycling
Range of wire lengths from 300mm to 5000mm
Sensor tip and extension cable molded together as one hot vulcanized unit
Outdoor temperature measurement
-50°C to +105°C continuous operation temperature range, +125°C for up to a maximum of 6-hours
3750VAC dielectric strength
>100MΩ insulation resistance at 1000VDC
2 x 0.30mm2 (23AWG) cable type
7 x ø0.23mm (0.30mm2) wire conductors
Amphenol Advanced Sensors IP Rated Harsh Environment Sensors
Designed for harsh, demanding environments and delivers enhanced performance as well as reliability.
