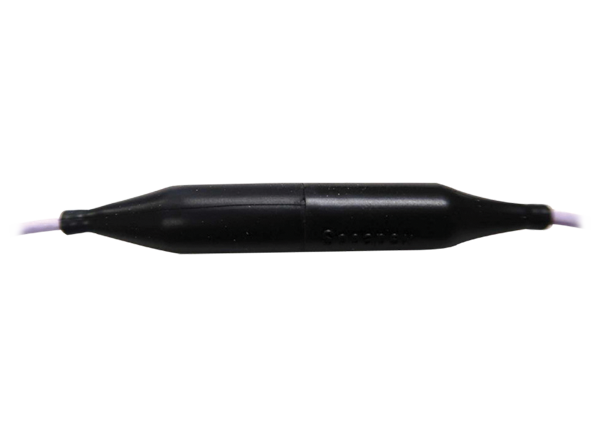

Amphenol Fiber Systems International PROMI In-Line Miniature Optical Adapters

Amphenol Fiber Systems International PROMI In-Line Miniature Optical Adapters are solutions for an optical link in harsh environments. Amphenol FSI PROMI Adapters offer ARINC 801 termini and can be used on patch cords already in place. The PROMI allows the division of the link into several sections in reduced spaces where the connector is not suitable. This optical miniature extender PROMl realizes a highly compact removable splice.

Features

  • In-line miniature optical adapters
  • Easy installation and maintenance
  • Can be used on patch cords already in place

Applications

  • Military
    • Command, Control, Communications, Computers, Intelligence, Surveillance, and Reconnaissance (C4ISR)
    • Unmanned Aerial Vehicles (UAVs)
    • Radars
    • Missiles
  • Avionics
    • Military head-up displays
    • Military radars
    • Commercial in-flight entertainment (IFE)
  • Industrial heavy-duty environments

Specifications

  • Immersion under 100mm of water for 30 minutes sealing
  • 500 hours (mated) salt spray
  • -55°C to +125°C operating temperature range
  • 500 cycles mating durability
  • Vibration
    • Ambient temperature - 1g2/Hz
    • Duration of 8 hours in 2 axis, X and Y direction
    • <4μs duration of micro-discontinuity
    • IL max 0.7db
    • Duration of 8 hours / axe – 2 axe
  • 68N / 3 pulls / 1 min cable retention
    • Due to ARINC801 terminus
    • Depends on cable type
  • Insertion loss
    • 0.2dB typical, 0.7dB maximum 850/1300nm (multi-mode)
    • 0.3dB typical, 0.7dB maximum 1310/1550nm (single-mode)

Dimensions

Chart - Amphenol Fiber Systems International PROMI In-Line Miniature Optical Adapters
