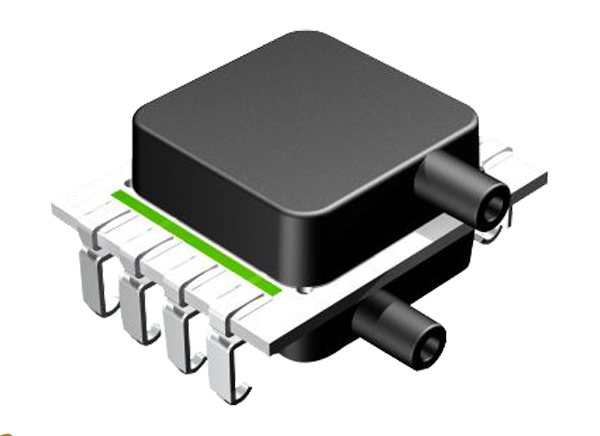

Amphenol All Sensors DLHR Low Voltage Digital Pressure Sensors
Amphenol All Sensors DLHR Low Voltage Digital Pressure Sensors feature a 0.5inH2O to 60inH2O pressure range and a 1.68V to 3.6V supply voltage range. Amphenol All Sensors DLHR series is based on CoBeam2™ technology that reduces package stress susceptibility for improved long-term stability and position sensitivity. The digital interface makes it easy for designers to integrate the sensors into a wide range of process control and measurement systems, allowing direct connection to serial communications channels. For battery-powered systems, the sensors can enter very-low-power mode between readings to minimize load on the power supply.
These calibrated and compensated sensors provide accurate, stable output over a wide temperature range (-25°C to +85°C). This series is intended for use with non-corrosive, non-ionic working fluids such as air, dry gases, and the like. A protective parylene coating is optionally available for moisture/harsh media protection.
Features
- 0.5inH2O to 60inH2O pressure range
- 1.68V to 3.6V supply voltage range
- I2C or SPI interface (automatically selected)
- Better than 0.25% accuracy
- High-resolution 16-/17-/18-bit output
Applications
- Medical breathing
- Environmental controls
- HVAC
- Industrial controls
- Portable / handheld equipment
Specifications
- Supply voltage (Vs)
- 3.63VDC absolute maximum
- 1.75VDC to 3.60VDC recommended
- Temperature ranges
- Compensated
- 0°C to +70°C (commercial)
- -20°C to +85°C (industrial)
- Operating
- -25°C to +85°C
- Compensated
- 10psig common mode pressure
- +270°C lead temperature (soldering 2s to 4s)
- 0% to 95% RH humidity limits (non-condensing)
Equivalent Circuit
