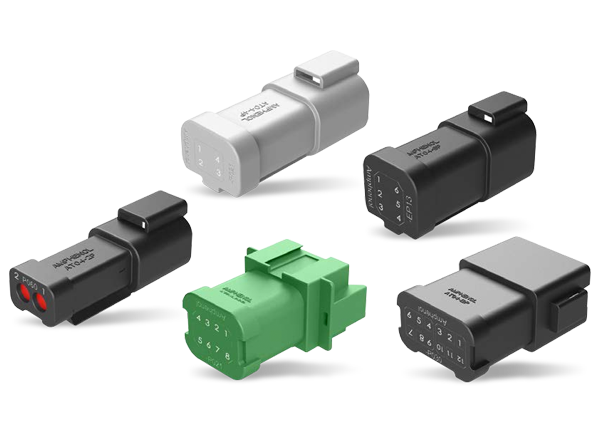

Amphenol Sine Systems HYPERBUS™ AT Series™ IP67 Bussed Receptacle Connectors provide a high-performance, cost-effective solution for heavy-duty applications. These IP67-rated receptacles contain superior environmental seals with seal retention capabilities. All HYPERBUS Receptacle Connectors are intermateable with standard AT Series™ Plugs as well as industry-standard connectors. The advantage of a "bussed" system is that the maximum rated current does not exceed 13A. Maximum rated current is determined by the combined current across the entire buss. Various combinations of current can be achieved but must be limited to a maximum of 13A. Amphenol HYPERBUS AT Series connectors are ideal for use in a variety of interconnect applications where a common "bussed" electrical pathway is required. Applications include heavy duty, transportation, marine, diagnostic, military, alternative energy, and agricultural.
2, 4, 6, 8, and 12 position receptacles
Sealed integrated bussed feedback assembly
Rectangular, thermoplastic housing
Included wedge-lock confirms contact alignment / retention
Integrated latch for mating
Mates with standard AT Series plugs
Nickel or Gold contacts
16 contact size
13A max. current rating per contact
-55°C to +125°C at rated current operating temperature range
