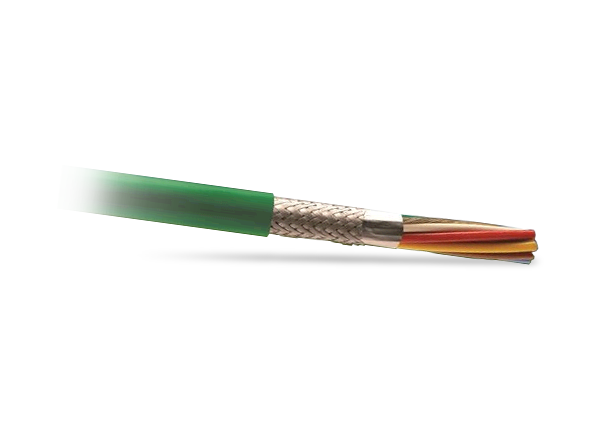

Alpha Wire EcoCable® is 100% recyclable with modified polyphenylene ether (mPPE) jacketing and insulation. This material provides the advantages of a smaller, lighter control cable that can handle temperatures from -50°C to +105°C. Alpha Wire EcoCable is up to 47% smaller and up to 65% lighter than PVC cable while meeting RoHS and WEEE requirements. These cables do not contain halogens, phthalates, or heavy metals, and are available as unshielded, braid shielded, or with Supra-Shield® foil + braid shield.
No halogens, phthalates, or heavy metals
Jacket and insulation made of mPPE
Suitable for use in NFPA 79 applications
Up to 6x flexing bend radius
Available as unshielded, braid shielded, or with Supra-Shield® foil + braid shield
-50°C to +105°C temperature range
• UL AWM 21510 (600V, 105°C) and UL AWM 21492 (300V, 80°C) • CE • UL VW-1 • RoHS and REACH compliant • CSA AWM I/II A/B FT1 • WEEE • IEC 60332-2 flame behavior
Alpha Wire EcoCable® Mini Cables
Up to 32% smaller and 44% lighter than standard 300V PVC cable, and 100% recyclable.
