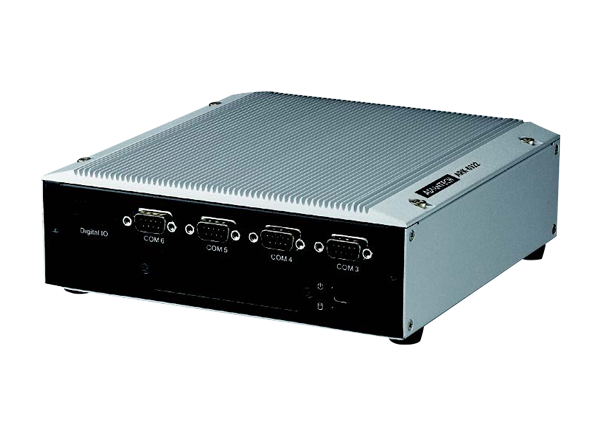

Advantech ARK-6322 Mini-ITX Fanless Embedded Box PC

Advantech ARK-6322 Mini-ITX Fanless Embedded Box PC features an Intel® Celeron quad-core J1900 System on Chip (SoC). This 2GHz SoC offers turbo boost up to 2.41GHz and 2MB of L2 cache. The ARK-6322 PC features two 204-pin Small Outline Dual In-line Memory Module (SO-DIMM) up to 8GB DDR3L 1333MHz SDRAM. This embedded box PC features Realtek ALC892 high definition audio with mic-in and line-out. The mechanical flexible design of this PC is reserved for iDoor modules with extended I/Os and easy customization. The multiple I/O ports include dual LANs, six serial, one USB 3.0, and seven USB 2.0 ports. This PC also includes one full-size MiniPCIe (for WLAN or WWAN module) and one half-size MiniPCIe (for mSATA).


  • Supports Intel® Celeron quad-core J1900 SoC processor
  • Mechanical flexible design reserved for iDoor modules with extended I/Os and easy customization
  • Support 1 full-size and 1 half-size MiniPCIe
  • Low power consumption and application-ready system
  • Suitable for VESA/desk mountings
  • Aluminum housing construction
  • Lockable DC jack design
  • Supports SUSIACCess and embedded software Application Program Interfaces (API)


  • Processor system
    • Supports Intel® Celeron quad-core J1900 QC 2GHz SoC processor
    • System memory up to 8GB DDR3L 1333GHz SO-DIMM
    • 255-level intervals watchdog timer.
    • AMI 16Mbit SPI
  • Power consumption
    • 12VDC input voltage
    • 60W AC to DC power adapter with lockable design
    • 3V/210mAh Real-Time Clock (RTC) battery with wire.
  • I/O ports
    • 5 RS-232
    • 1 RS232/422/485 with auto flow control (COM3)
    • 7 USB 2.0 and 1 USB 3.0
    • 2 RJ-45 ethernet
    • 1 audio (mic-in/line-out)
  • Operating temperature
    • 0°C to 50°C (standard temperature range with 0.7m/s airflow)
    • 0°C to 40°C (standard temperature range with 0.7m/s airflow) with 3.5-inch hard disk
    • 0°C to 45°C (standard temperature range with 0.7m/s airflow) with 2.5-inch hard disk
  • 200mm x 64mm x 200mm dimension
