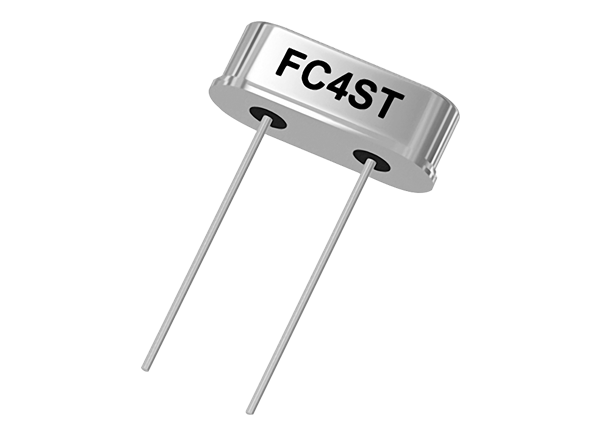

Abracon FC4ST Through-Hole Crystals
Abracon FC4ST Through-Hole Crystals offer a 3.2MHz to 80MHz frequency range, 300Ω maximum ESR rating, and tolerances down to ±10ppm. These crystals feature stabilities down to ±5ppm and an operating temperature range of -55°C to +125°C. Abracon FC4ST Through-Hole Crystals are offered in an 11.35mm x 4.65mm package.
Specifications
- Tolerances down to ±10ppm
- Stabilities down to ±5ppm
- 300Ω maximum ESR rating
- Fundamental or 3rd OT operating modes
- -55°C to +125°C operating temperature range
- 3.2MHz to 80MHz frequency range
- 7pF shunt capacitance
- 0.5mW (100µW typical) drive level
- Lead free
- RoHS compliant
Dimensions (MM)
