Abracon ASDTDV, ASETDV, & ASATDV Clock Oscillators
Abracon ASDTDV, ASETDV, and ASATDV Clock Oscillators offer a 15pF output load in hermetically-sealed ceramic packages. These standard oscillators feature low current consumption, standby (power down) function, and output waveform CMOS. The ASDTDV, ASETDV, and ASATDV clock oscillators are ideal for portable and wearable electronics, Internet of Things (IoT), consumer electronics, industrial control and automation, and mobile communication. These oscillators are RoHS/RoHS II compliant and Moisture Sensitivity Level (MSL) 1.
Features
- 1.68V to 3.63V continuous Vdd operation range
- Low current consumption
- Standby (power down) function
- Output waveform CMOS
- Hermetically seam-sealed ceramic package
Specifications
- 9.6MHz to 60MHz frequency range
- 15pF output load
Applications
- Portable and wearable electronics
- Internet of Things (IoT)
- Consumer electronics
- Industrial control and automation
- Mobile communication

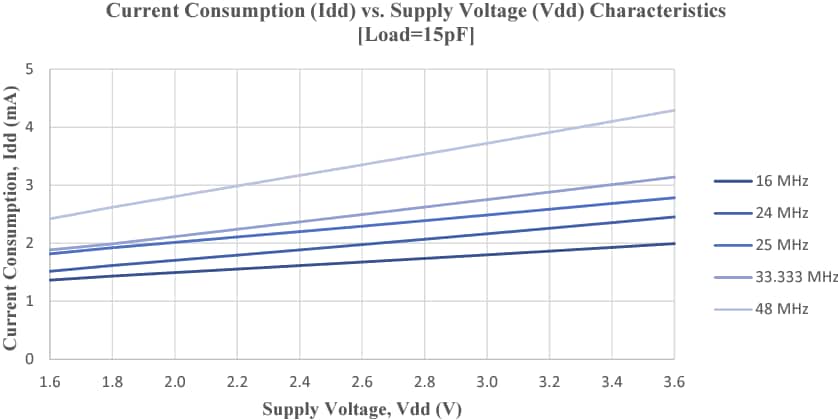

Typical Current Consumption (Idd) vs. Supply Voltage (Vdd)
View Results ( 83 ) Page
| หมายเลขชิ้นส่วน | เอกสารข้อมูลสินค้า | คำอธิบาย | ความถี่ |
|---|---|---|---|
| ASDTDV-30.000MHZ-XY-T |  |
Standard Clock Oscillators 30.000 MHZ CMOS SMD | 30 MHz |
| ASDTDV-48.000MHZ-LY-T | |
Standard Clock Oscillators 48.000 MHZ CMOS SMD | 48 MHz |
| ASETDV-16.000MHZ-XY-T | |
Standard Clock Oscillators 16.000 MHZ CMOS SMD | 16 MHz |
| ASDTDV-10.000MHZ-LY-T | |
Standard Clock Oscillators 10.0 MHZ CMOS SMD | 10 MHz |
| ASDTDV-10.000MHZ-XY-T | |
Standard Clock Oscillators 10.0 MHZ CMOS SMD | 10 MHz |
| ASDTDV-12.000MHZ-LY-T | |
Standard Clock Oscillators 12.0 MHZ CMOS SMD | 12 MHz |
| ASDTDV-16.000MHZ-LY-T | |
Standard Clock Oscillators 16.000 MHZ CMOS SMD | 16 MHz |
| ASDTDV-16.000MHZ-XY-T | |
Standard Clock Oscillators 16.000 MHZ CMOS SMD | 16 MHz |
| ASDTDV-24.000MHZ-LY-T | |
Standard Clock Oscillators 24.000 MHZ CMOS SMD | 24 MHz |
| ASDTDV-24.576MHZ-LY-T | |
Standard Clock Oscillators 24.576 MHZ CMOS SMD | 24.576 MHz |
