3M CC-Link Connectors & Cables

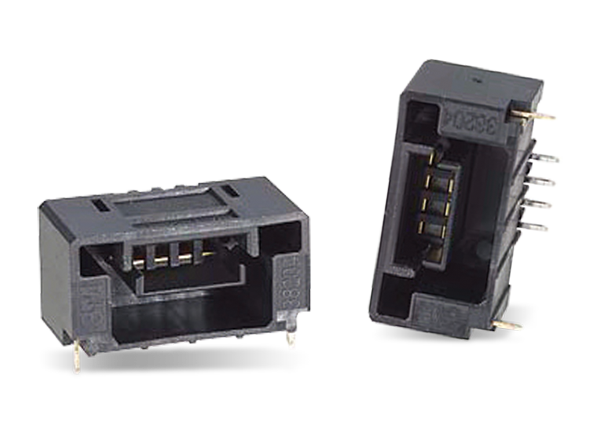

3M's CC-Link Connectors and Cables were designed to meet the requirements of the CC-Link standard and to enable T-Tab terminations as well as mid-cable terminations. The CC-Link Connectors' hermaphroditic design reduces the number of components required to interconnect and the well-approved IDC termination process enables easy field termination and reduces labor cost relative to traditional interconnect alternatives. In combination with Power Clamp or Mini-Clamp products, a wire reduction of up to 70% can be achieved. The 3M CC-Link Connectors and Cables are suitable for conductor sizes of 18 and 20AWG of discrete wires or flat ribbon cables.
Features
- Designed for CC-Link/LT industrial automation field networks
- Conforms to CC-Link/LT
- Hermaphroditic four-point contact mating structures reduces the number of different components required to interconnect and ensures a reliable interconnect
- Easy, labor saving, and reliable IDC termination
- T-Tap termination enable mid-cable terminations without special preparation or handling of the cable or wires in order to interconnect fieldbus and power lines at any point
- Easy field termination with no special wire preparation – no stripping, tinning, or special tooling
- Can terminate with a common pair of pliers
- Latching mechanism maintains a reliable interconnection in demanding field applications
Specifications
- 5A maximum current carrying capability per contact
- 160V voltage rating
- 1000VACrms at sea level withstanding voltage
- -20°C to +70°C temperature rating
- +65°C UL temperature rating
- Design accepts multiple wire diameters of 1.1mm to 2.54mm, conductor sizes of 18AWG to 22AWG
Applications
- Factory Automation
- Computer numeric controllers
- Programmable logic devices
