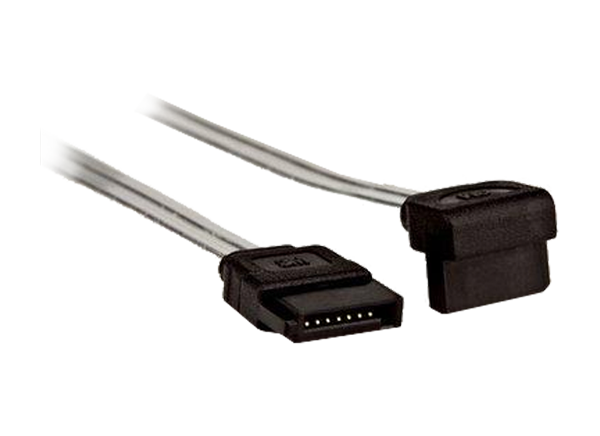

3M™ 5602 Series SATA 3.0 Signal Cable Assemblies are a high routability copper cable assembly designed using 3M™ Twin Axial Cable technology to create a flexible, foldable, high-performance solution. The 5602 cable assemblies meet SATA specification 1A requirements up to 1 meter. Lower profiles than similar AWG twin axial cables and thinner cable construction allows for dense routing as well as flexible routing options within a chassis. The 3M Twin Axial cables are foldable and allow for extremely tight bend radius with minimal performance impact to enable unique packaging configurations. 3M 5602 Series is ideal for use with SATA 1.0/2.0/3.0 interfaces in enterprise, networking/communications, data centers, high-speed I/O storage, RAIDs, JBODs, HBAs, high-bandwidth switches, router, and server applications.
7-Position serial signal assembly
Multiple variations in length and interface attachments
Polarized interface ensures proper alignment
26AWG solid-wire differential pairs
Meets SATA specification 1A
-40°C to +80°C temperature rating
High-temperature thermoplastic insulation material
UL 94V-0 flammability rating
1.5A current rating
500VAC at sea level withstanding voltage
103MΩ Min. insulation resistance
30µ" gold wiping area
50µ" nickel underplating
3M Serial Advanced Technology Attachment Connectors
Provides small, fast, and reliable solutions for storage interfaces.
